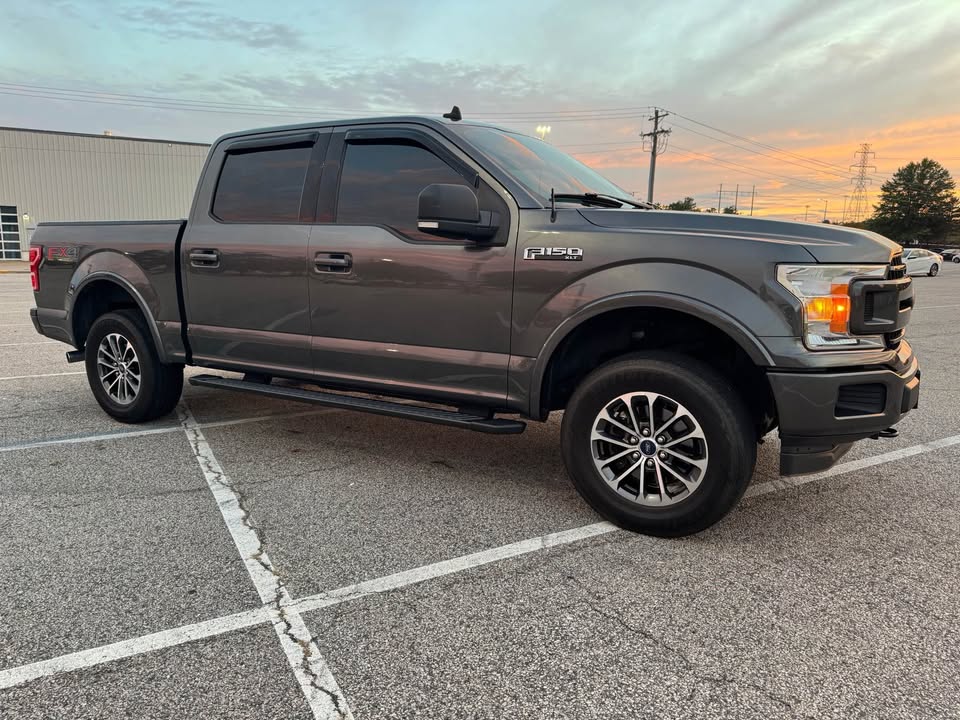

Ford F-150 P0171 Code: Stop the Lean Before It Cooks Your Engine

The idle’s off. Fuel economy tanks. Code P0171 pops up, System Too Lean, Bank 1. That means too much air, not enough fuel, and a PCM that can’t trim its way back to balance.

Sometimes it’s a cracked vacuum elbow. Other times, it’s the start of a lean run hot enough to torch a catalytic converter.

Here’s the breakdown. The PCM targets a 14.7:1 air-fuel ratio. When it can’t correct the mixture any further, it throws the code. Not just lean,uncorrectably lean.

This guide cuts straight to the fix: how to read fuel trims, tell a bad MAF from weak fuel pressure, and spot failure patterns in Triton, Coyote, and EcoBoost engines. No guessing. Just answers.

1. How bad is P0171? Depends how hot and how long it runs

Heat is the real enemy

Lean air-fuel means higher combustion temps, and that’s where things start cooking. The catalytic converter takes the first hit.

Prolonged lean running can melt its ceramic core and clog the flow, choking power and spiking backpressure. Once that happens, replacement isn’t cheap; parts and hardware can run over $2,000.

If the MIL starts flashing, it’s misfiring and dumping raw fuel. The converter won’t survive long; it can fail in minutes, not days.

High temps also spike NOx emissions. Even if the truck runs “fine,” it’ll show up dirty on a smog test. A small exhaust leak upstream of Bank 1 Sensor 1 can fake a lean reading, tricking the PCM into overfueling.

That starts a swing, rich, then lean again, as trims try to correct the lie. That oscillation cooks the cat faster than a steady fault. Bottom line: stop the heat cycle, or you’ll be buying hardware.

How far can you drive before it gets expensive?

If the light’s steady and trims are only high at idle, you’re probably safe for a short, gentle drive. Highway cruising with light throttle keeps vacuum low and minimizes unmetered air. But hit a hill or haul a trailer, and EGTs climb fast.

If trims stay high at idle and at 2,000–2,500 rpm, you’re likely dealing with a bad MAF or weak fuel delivery. Driving it like that risks misfires and catalyst damage, even without a flashing light.

It also messes with readiness. A lean code can block or reset monitors, so you’ll fail a state inspection even if it feels fine. The only green light: no codes, no flashing MIL, clean freeze-frame data, and fuel trims under +10% at hot idle and steady cruise.

2. What actually triggers P0171 on Ford trucks?

Unmetered air sneaking in after the MAF

If air slips in past the MAF sensor, the PCM underestimates total flow and trims climb positive. Idle is hit hardest, vacuum’s highest, pulling air through cracked hoses, split ducts, or brittle gaskets.

Raise RPMs and the leak becomes a smaller share of total airflow, so trims drop. That idle-high, cruise-lower pattern is a classic vacuum leak signature.

Turbo engines complicate things. A pre-turbo leak acts like any vacuum leak, lean at idle. But a post-turbo charge leak may look fine at idle, then run lean under boost as air escapes under pressure. On EcoBoosts, loose clamps or split PCV hoses are repeat offenders. Watch for trims that spike only under load.

When the MAF sensor lies about airflow

A dirty or drifting MAF sensor undercounts airflow across the board. That leads to high trims at idle and while cruising. Oiled filters, dust, or poor grounds can foul the hot film and skew readings.

On a healthy V8, idle airflow should be in the low single digits (grams per second) and rise smoothly with throttle. Any flat spots or dropouts in live data point to trouble.

Sometimes the connector is the real problem. A bad ground or corroded signal pin can add noise that mimics low airflow. Cleaning the element helps only if the readings return to normal. If they stay low and erratic, you’re not dealing with a hose or injector; it’s time for a proper OE-calibrated MAF.

Fuel volume can’t keep up

Weak fuel pressure forces the PCM to add fuel trim everywhere. Once it hits its limit, P0171 sets.

Older 5.4L trucks usually hold between 45–60 psi. Coyotes target around 58 psi. If pressure dips hard during a throttle snap or recovers slowly, suspect a tired pump, clogged filter (on older systems), or a lazy regulator that lets pressure drop too early.

When only Bank 1 triggers P0171 (and not P0174), narrow your scope. A restricted injector on that side can starve one or two cylinders enough to drag the whole bank lean. On EcoBoosts, it might be the high-pressure pump or injector seals on the DI system, even if low-side pressure looks fine.

And don’t forget the exhaust. A hairline leak before the B1S1 O2 sensor can pull in outside air, faking a lean reading and spiking trims until it’s sealed.

3. Use engine patterns to shortcut the diagnosis

Triton 5.4: The elbow that cracks and sets off both banks

On 1997–2010 5.4L trucks, check the PCV elbow near the throttle body first. Heat cycles bake the rubber until it cracks, setting both P0171 and P0174.

At hot idle, a good MAF should read around 1 gram/sec per liter, so expect about 5.4 g/s. V8s generally idle between 2 and 7 g/s.

Fuel rail pressure typically lands between 45–60 psi, but old 2V engines can dip into the high 30s at idle. Don’t guess, snap test the pressure under throttle to catch what static numbers miss.

Coyote 5.0: Where even a loose airbox lid matters

On 2011+ Coyotes, the intake system seals tight, so even a cracked airbox lid or slightly unseated inlet tube can lean out Bank 1.

Port injection targets 58 psi, so if pressure looks fine but trims stay high, shift focus back to the MAF curve and ducting. At idle, you should see a stable single-digit g/s reading that climbs clean to 2,500 rpm without dead spots or dropouts.

EcoBoost 2.7 & 3.5: Boost hides problems until it’s too late

Turbo trucks split lean issues in two: pre-turbo leaks spike trims at idle, while charge-side leaks show nothing until boost builds, then suddenly lean out. Direct-injection adds another layer.

Some 2018 2.7L trucks had TSB 18-2310 for injector seal faults that triggered lean codes, even when low-side fuel pressure passed. Watch how trims shift under load, then back it up with a proper boost smoke test before touching the pump.

Legacy 4.2 V6: Seeping gaskets and worn IMRC bushings

The 1997–2008 4.2L V6 loves to set P0171 and P0174 when the upper intake gaskets leak. Worn IMRC bushings pull in unmetered air beneath the runners, dragging trims up at idle.

Smoke rising from beneath the runner control tells you more than hours of guessing. Once you seal the leak, trims should settle below +10% at idle and cruise steady at 55 mph.

4. Read trims like a pro, not a parts-swapper

What those trim numbers are really saying

STFT and LTFT are fuel correction numbers. Zero means perfect. A healthy truck stays between ±5%. When Bank 1 climbs over +10%, the PCM’s compensating to stay alive. P0171 usually trips around +25% to +35% LTFT.

But context matters. Coolant must be hot. Loop must be closed. RPM must be steady. Skip those, and your numbers mean nothing.

Idle trims are always the most dramatic. High vacuum pulls in air through even the tiniest leaks, like a split PCV elbow, and that can spike trims near +30%. Raise RPM, and airflow grows. If it’s a leak, trims drop. If it’s fuel or MAF, trims stay high.

Idle vs. load is your fast track to the cause

Start at hot idle and read total trim. Then bump RPM to 2,000–2,500 and hold it. Watch the shift.

If trims drop from, say, +25% at idle to under +10% at cruise, you’ve got an intake leak, probably a hose, duct, or gasket. If trims stay high through both ranges, look at the MAF curve and fuel pressure.

Load throws another clue. An EcoBoost might idle fine but lean out under boost if there’s a charge-side leak. A weak fuel pump can hold idle pressure but sag during a snap, then recover slowly. Follow the live pattern, not the static number.

Freeze-frame = the crime scene snapshot

P0171 doesn’t just set; it records the moment. That freeze-frame tells you everything: coolant temp, RPM, load, airflow, and trims. Treat it like a crime scene photo.

If the snapshot says 1,600 RPM, full temp, and trims pegged, recreate that condition and watch for a repeat. If it’s idle with +30% trims and airflow looks normal, smoke test the intake, start with the PCV and manifold.

Don’t chase ghosts. Intermittent faults won’t show in a quick bay check. Use the frame to pinpoint conditions, then confirm whether it smells like vacuum, MAF, or fuel.

Trim patterns that point the wrench

5. The test plan that actually finds the fault

Start with what you can see and hear

Hot engine, trims high at idle? Check the obvious first. A loose airbox lid, misaligned inlet tube, or cracked PCV elbow lets unmetered air in after the MAF, pushing trims way up.

Listen near the throttle body and PCV lines for a sharp hiss. Cap the oil fill, check the dipstick seal, and recheck trims. If they drop, you’ve found your leak path.

Let smoke expose the leak you missed

Inject smoke into an intake port with the engine off. Look for vapor seeping from elbows, duct joints, throttle gaskets, and manifold seams. Since P0171 is Bank 1, track leaks in that direction first.

If trims spike only at idle, focus on small hoses and upper manifold seams. Then check the Bank 1 exhaust manifold and upstream joints, because a tiny pre-cat leak can fake a lean signal.

Prove the MAF is lying before replacing it

Clean the sensor with MAF-safe spray. Watch live data. A healthy V8 idles at a few grams per second and climbs smoothly with RPM. If the airflow stays low or jumps around, back-probe the power, ground, and signal.

Only replace the MAF if the curve stays skewed and the wiring checks out. Use an OE-calibrated unit; cheap sensors shift the curve and keep trims high even if the leak is fixed.

Fuel pressure has to hold under stress

Turn the key to ON, pressure should rise instantly to spec: 45–60 psi on old 5.4L, 58 psi on Coyotes. At idle, pressure should hold steady. A quick throttle snap should give a small bump, never a sag.

If pressure drops, then recovers slowly, suspect the pump or filter. Once shut off, the needle should barely move in the first minute. A rapid drop points to a leaking regulator or a Bank 1 injector letting fuel drain back into the rail.

Isolate it to one bank, not the whole truck

If trims spike only on Bank 1, and Bank 2 looks fine, the issue is local. Run an injector balance or cylinder cutout test. Pull plugs on Bank 1; if one’s chalk white, it’s running dry.

On EcoBoosts, check low-side pressure first. Then load-test the high-pressure side, DI injector, or seal faults show up only under demand.

Use freeze-frame like a crime scene log

Open the freeze-frame that set P0171. Copy the RPM, coolant temp, load, and trim data. Recreate those conditions on a test drive.

If the frame shows idle with +30% trims and airflow looks right, go back to gasket checks and smoke. Matching the snapshot turns a mystery lean code into a repeatable fault you can chase.

Confirm the fix where it matters, on the road

Once the repair’s done, clear the codes and reset trims. Let the engine reach full temp, then hold a hot idle and watch total trim on Bank 1. It should settle under +10%. Then cruise steadily at 55 mph. If trims stay in check and the oxygen sensors switch normally, you’re on the right track.

Only after both conditions pass should you check readiness monitors. Catalyst and O₂ systems should complete cleanly, without the MIL lighting up again.

6. The real-world fixes that clear P0171 on an F-150

Air leaks you can stop without guessing

Start where unmetered air gets in. On Tritons, the PCV elbow cracks with age and often sets P0171 and P0174. Replace it, and any soft vacuum hoses. Reseat the airbox lid and inlet duct so the MAF sees everything.

If idle trims were sky-high, expect a manifold gasket leak. Vacuum’s strongest at idle, so even a tiny seam will skew everything.

Sensors that lie, and how to prove it

A dirty MAF undercounts airflow, forcing the PCM to add fuel. Clean it properly, then check live g/s rise from idle to 2,500 rpm. If it’s still low or erratic, confirm wiring, then swap in a proper OE-calibrated unit. Cheap MAFs often cause more trouble than they fix.

Fuel hardware that solves volume loss

Old-school setups with serviceable filters lose flow before the pump fails. A clogged filter can starve the rail. If pressure dips on a snap and recovers slowly, you’re looking at a tired pump.

Coyotes aim for 58 psi. Older 5.4L setups range from 45–60. If only Bank 1 is lean, run an injector balance on that side. Replace the outlier that’s dragging trims up.

EcoBoost quirks that hide the real issue

Turbo leaks don’t show up until boost builds. Smoke the charge path, then retorque clamps or replace split couplers. If trims only spike under load, check the high-pressure fuel system.

Some 2.7L trucks had known injector seal issues. Once disturbed, DI seals must be replaced; reused ones often leak air or fuel and throw the mix off again.

Exhaust leaks that fake a lean condition

A small upstream leak near Bank 1 Sensor 1 pulls fresh air into the stream, fooling the sensor into calling it lean. It’s louder on cold starts, but the damage happens hot.

Fix usually means new studs, gaskets, or a manifold. Once sealed, trims at idle should drop and stay down, saving the converter from trim-induced overheating.

Common F-150 P0171 fixes, effort, and cost

7. Bulletins and patterns that save hours, not just minutes

EcoBoost DI bulletin that explains load-only lean

On 2018 2.7L EcoBoosts, TSB 18-2310 links P0171 to direct-injector and seal failures, not a bad low-side pump. That’s why trims spike under throttle, while fuel pressure looks fine at idle. The high-pressure system can’t deliver what the PCM commands.

If your freeze-frame shows warm engine, light throttle, and trims that climb with RPM, you’re likely staring down a DI issue. Before chasing hoses or guessing at gaskets, ask the service writer to check VIN coverage and injector part numbers. This bulletin has teeth; use it.

The old Triton vacuum play still works

The 5.4L’s vacuum leak pattern hasn’t changed in 20 years, and it’s still gold. A cracked PCV elbow near the throttle body is the usual suspect. P0171 plus P0174, idle trims over +25%, and smoke pouring from the elbow, that’s your case.

Ford’s own service literature points techs to inspect PCV lines and upper manifold gaskets before swapping anything else. Walk in with hot-idle trim data and a smoke test photo, and they’ll stop blaming the MAF and start sealing the intake.

Bring data, not guesses, to the parts counter

Print the freeze-frame that set P0171. Add screenshots of fuel trims at hot idle and again at 2,000–2,500 rpm. Got a fuel pressure gauge trace? Include KOEO rise, idle hold, and a throttle snap.

For EcoBoost? Add a boost-smoke test result or a clear note that trims only rise under load. That rules out classic vacuum leaks and fast-tracks the real problem. With that evidence on the desk, you’ll skip the script and get routed to the right tech, and maybe catch a bulletin or parts program early.

8. Shortcuts that speed up F-150 diagnosis by engine

Where each engine family usually breaks

Each F-150 engine has its habits. Tritons lean out from PCV elbows and intake leaks. Coyotes exaggerate tiny air leaks and MAF drift. EcoBoosts bring charge-side boost leaks and direct-injection failures that only show under load.

How trims tell you where to go next

Trims that spike only at idle? Think vacuum leak, especially on Tritons and the old 4.2 V6. If trims hold high at both idle and 2,000 rpm, it fits a dirty MAF or weak rail pressure. But when an EcoBoost idles fine and goes lean under load, that’s a charge leak or high-pressure injector problem almost every time.

Fast-fix table: What usually fails by engine

Numbers that cut through the noise

At hot idle, a healthy V8 shows low single-digit MAF g/s and climbs steadily to 2,500 rpm. Fuel rail pressure? Expect 45–60 psi on Triton, and 58 psi on Coyote.

If only Bank 1 runs lean without a P0174, you’re likely dealing with a weak injector or a pre-cat leak on that side. If both banks lean out together, it’s back to the meter or a large vacuum leak upstream of the MAF.

9. The drive that proves the job’s done right

Trims that settle and stay there

Warm the truck to full temp and watch Bank 1 at hot idle. Total trim should stay under +10%, with STFT hovering close to zero and correcting in tight, even swings.

Hold a steady 55 mph, LTFT should stay under +10%, and upstream O₂ sensors should switch cleanly. If it’s a wideband truck, lambda should ride near 1.00, usually within ±0.02 once the mix stabilizes.

Monitors that finish clean

A real fix doesn’t just clear the light; it completes the monitors. Once trims hold steady at idle and cruise, the catalyst and O₂ tests should finish without flipping back to “not ready.”

Coolant must be hot, loop closed, and load steady for a few minutes so the PCM can verify converter efficiency. If you sealed an exhaust leak, this is your first sign that heat cycles are back in check.

When it takes more than one drive

Clearing codes resets long-term fuel trims. The PCM has to relearn airflow and fueling from scratch. For the first few minutes, expect trims to drift. They’ll settle as the idle and part-throttle cells repopulate.

EcoBoost trucks may need several light boost events before trims lock in, since the charge system and DI tables adapt with load. If you cleaned or replaced the MAF, expect a short warm-up and cruise before the airflow curve syncs back with fueling.

Keep the proof for tomorrow

Snap two screenshots: one at hot idle and one at steady 55 mph, both showing trims under +10%. If you worked on fuel delivery, include rail pressure data, KOEO rise, no sag on snap, steady at idle. Staple those to the RO. They’ll prove the truck’s good today, and give you a clean baseline if it returns later.

What P0171 really means in an F-150

When this code sets, it’s not a sensor glitch; it’s the PCM calling out a real imbalance it can’t correct: too much air, not enough fuel.

On older Triton and 4.2L engines, the usual suspects are cracked PCV elbows and seeping intake gaskets. On Coyotes, small air leaks and drifting MAF readings drive trims too far. On EcoBoosts, it’s charge leaks or high-pressure fuel problems that only show under load.

Ignore it, and the engine runs hotter than most owners realize. Lean combustion spikes exhaust temps. Once the converter starts soaking that heat, the ceramic core begins to melt, and that’s a four-figure repair waiting to happen.

The fix doesn’t take magic. Just good data and a methodical approach. Read trims. Match them to airflow and fuel numbers. Find the leak or the restriction.

When Bank 1 settles below +10%, and the truck runs smooth again, you didn’t just shut off a light; you restored the balance the PCM’s been chasing the whole time.
