You flexed through a rock garden, dragged the belly, and made it out grinning. The next morning? There’s a black smear on the transmission pan and a fresh mist of grease splattered across the skid plate.
The Jeep still rolls, but now there’s a low buzz under your boots once you hit 40. That’s not trail rash. That’s your front drive shaft starting to give up.
If you’re running a 2.5-inch lift or more on a 2012 to 2018 JK, odds are the stock Rzeppa CV joint just blew out its rubber boots. Once the grease escapes, it’s open season.
Water, grit, and heat move in fast and tear that joint apart from the inside. You won’t see it fail at first. But you’ll feel it when the vibrations start or when the joint locks up in the middle of a climb.
Why the stock shaft taps out early
The factory Rzeppa CV joint can’t handle real angles

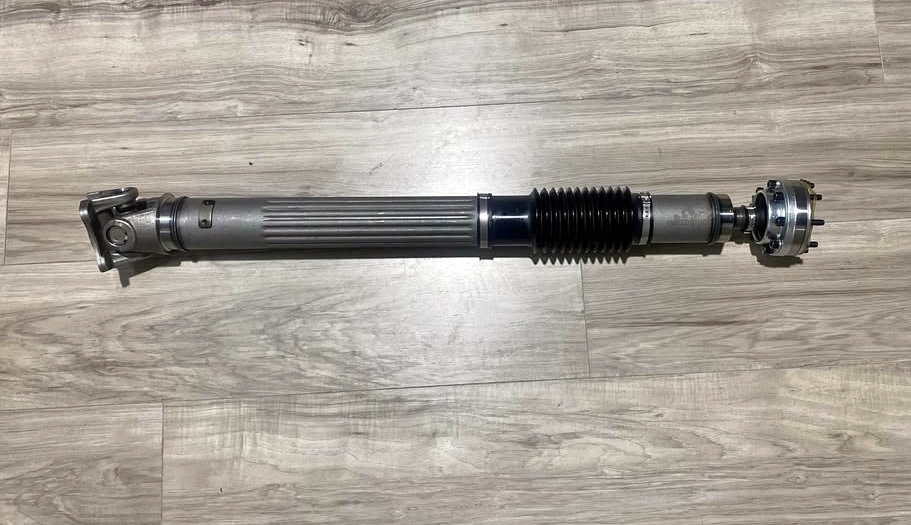

The stock JK front drive shaft uses a Rzeppa-style CV joint. It’s a sealed unit meant to stay mostly straight. Works fine for daily driving. But once you start flexing the suspension or running steep trails, that joint gets pushed too far.
The boot swells, then splits. Since it’s not greasable, you can’t flush out water or grit. One rip, and that joint’s already counting down.
Even small lifts mess up the angles
A 2.5-inch lift doesn’t seem wild, but it’s enough to throw off the pinion angle. That change forces the drive shaft to spin at a harsher angle than it was ever meant to.
More angle means more friction inside the joint. And if the Jeep flexes out hard, like dropping a tire into a rut or crawling over ledge, the boot can overextend and split open.
The 2012 to 2018 exhaust makes things worse
Starting in 2012, Jeep routed the exhaust crossover right under the front drive shaft. Lift the Jeep, and the stock shaft can rub right against it, especially when the suspension drops out. That rub can tear the boot, but worse, it cooks the joint. Heat from the exhaust bakes the grease and speeds up failure.
When the stock shaft is actually fine
For stock-height JKs running street tires and mild use, the factory drive shaft does the job. It’s quiet, smooth, and often lasts past 100,000 miles.
But once you go bigger, bigger tires, more travel, more torque, it turns into a weak spot. Any change in ride height or flex changes what the shaft has to deal with. And the factory part just isn’t built for it.
When your Jeep talks back: how to spot a dying front shaft
You don’t need a scanner to know your front drive shaft’s on the way out. It’ll tell you through the floor, the pedals, and the noise it makes. Here’s what to watch for before it fails on the trail.
Floorboard buzz kicks in around 35 mph
That low hum under your feet is usually the first sign. It points to a balance issue or a dry U-joint starting to go. It might quiet down at cruising speed, but comes back strong during throttle tip-in or deceleration. It shows up quicker if you’re running bigger tires or steeper angles after a lift.
Clunk when you hit the gas or let off
Feel a thud when pulling away or slowing down? That’s slop in the Rzeppa joint or a worn U-joint yoke. It’s common on lifted rigs where joints wear faster. That thud means there’s play in the driveline, and if left alone, it’ll start chewing up splines or locking up.
Squeaking at parking lot speed
A squeak that matches wheel rotation at low speed almost always means a dry U-joint. If it’s greasable, it’s asking for attention. If it’s sealed, it’s likely close to failure. Either way, catch it before it snaps or seizes and strands you.
Grease spray on the transmission tunnel
Pop the hood and see a shiny mist on the trans pan or skid plate? That’s not oil, it’s grease from a torn CV boot. Once it’s gone, dirt and water move in fast. The joint won’t last much longer after that mess starts flinging.
What each sound really means
| Symptom | Likely Cause | Component | Why it Matters |
|---|---|---|---|
| Buzz at 35+ mph | Imbalanced shaft or dry joint | Drive shaft, U-joint | Early-stage wear, may still be repairable |
| Clunk on accel/decel | Slop in Rzeppa or U-joint | CV joint, U-joint | Signals joint lash, will worsen quickly |
| Squeak at low speed | Lack of grease in U-joint | U-joint | Easy fix if caught before it fails |
| Grease spray underbody | Torn CV boot | CV joint | Means contamination inside, joint’s dying |
Why JK shafts keep failing and what’s really behind it
You’ve heard the clunk. You’ve seen the grease. Time to break down why the front drive shaft on your JK keeps wearing out, especially once you start lifting or wheeling harder.
Lift kits push the CV joint past its limits
The stock Rzeppa joint was built to run close to straight. Add a 2.5 to 3.5 inch lift, and the drive shaft-to-pinion angle often jumps past 15 degrees under flex.
That angle stretches the boot and overworks the bearings. The joint starts to grind itself apart, and the boot splits open. Once the grease is gone, failure is just a matter of time.
Exhaust clearance cooks 2012 to 2018 shafts
If you’re running a 2012 or newer JK with the Pentastar, the drive shaft has even less room. The fat stock shaft rubs on the crossover exhaust when the suspension droops.
That heat dries the grease and melts the boot. Once the boot fails, the joint wears fast. Lift the Jeep without fixing that clearance, and you’re asking for the CV to lock up at highway speed.
Water and mud eat the joints from the inside
The stock CV and U-joints aren’t serviceable. There’s no grease port, no way to flush them out. When the boot tears, water and grit get inside. It turns into a grinding paste that chews up the bearings while you’re still trying to figure out what’s causing the vibration.
Full droop or wheel-hop loads the yokes hard
Drop a wheel off a ledge or bounce through a rut, and the suspension unloads fast. That can bind the shaft at the yoke or stretch it past its slip range. The result is a torque spike that twists joints and bends tubing. Sometimes it breaks right then. Sometimes it waits until your next trip to let go without warning.
Bad installs and poor angles kill even new shafts
Even a brand-new shaft can fail early if your pinion angle is off or the control arms are misaligned. If the shaft wasn’t welded true or the slip joint isn’t phased right, you’ll get vibration, runout, or wobble that chews it apart.
You’ll chase the noise thinking it’s tires or wheel bearings, but it was a bad shaft setup from day one.
How to spot front shaft trouble without leaving your driveway
You don’t need a lift or an alignment rack to catch a bad front drive shaft. If you’ve got a flashlight, a phone, and a pair of jack stands, you’ve got what you need. Here’s how to track down the problem before it turns into a bigger repair.
Use the tire shake test to check for U-joint play
With the Jeep in neutral and the front end safely on stands, grab the front tires at the 3 and 9 o’clock positions. Rock them back and forth while watching the drive shaft yokes. If the shaft moves late or clicks before rotating, your U-joints have slop. That usually means they’re dry, worn, or both.
Check the CV boot with a mirror
Grab a flashlight and a small mirror and crawl under the front end. Look closely at the Rzeppa CV boot. Cracks, splits, or grease streaks are all red flags. Even a small tear lets in grit and water. If you see a drip on the shaft or grease on the transmission pan, the joint is already leaking and needs attention.
Use your phone to check driveline angle
Download a digital level app. Measure the angle of the front drive shaft, then measure the front pinion. Subtract the two to get the operating angle. If it’s more than 15 degrees, you’re risking joint overload and boot failure. That’s especially true if your suspension has a lot of droop.
Know when to call the driveline shop
If the Jeep shakes at speed and your tires and wheels check out, the drive shaft might be out of balance. You can’t test that at home. You’ll need a driveline shop with a proper bench and spin-balance setup.
Most muffler shops won’t have the right tools, so go to someone who builds and repairs shafts for a living.
From patch jobs to bulletproof swaps: what to do when your shaft gives out
If your front drive shaft starts making noise or slinging grease, you’ve got two choices. Patch it, or upgrade it. Here’s how the options stack up.
Rzeppa rebuild kits work, but only up to a point
If the rest of the shaft looks solid, you can replace just the CV joint with a rebuild kit. Some versions even come with high-angle boots to hold up longer on lifted rigs.
You’ll get new bearings, a fresh boot, and a tube of grease. Just make sure you pack it fully. These kits buy you time, but they’re still sensitive to angle. Push the joint too far, and you’re back where you started.
1310 double-cardan is the go-to for lifted JKs
This is the most popular upgrade, and for good reason. A 1310 double-cardan shaft handles more angle, fits most lift setups, clears the exhaust, and comes with joints you can grease.
It’s usually lighter than stock and built with parts from Spicer or Neapco. If you’re running 33s and doing light to moderate wheeling, this setup checks all the boxes.
1350 “one-ton” shafts are made for big torque and 35s
If you’ve regeared, added 35s, or dropped in more power, it’s time to step up to a 1350. These shafts are stronger all around. Bigger joints, deeper splines, and more torque capacity.
You’ll probably need upgraded yokes, and the shaft will be heavier. Not everyone needs it, but if you’re snapping 1310s or crawling with a V8, the 1350 takes it without flinching.
Tube material makes a difference
DOM steel is the standard. It’s strong and affordable. Alloy tubing is lighter but can dent more easily. 300M is overkill for most builds; it’s race-grade steel with serious fatigue resistance. Unless you’re hitting jumps or rock racing, DOM or alloy will hold up just fine.
Warranties vary. Read before you buy
Not all aftermarket shafts come with solid backing. Some brands only cover failures under normal use, which doesn’t include off-road abuse. Others replace broken parts, no questions asked. Don’t assume you’re covered. Check the fine print before you count on a lifetime warranty.
OEM vs. Aftermarket Drive Shaft Comparison
| Feature | OEM Rzeppa CV | 1310 Double-Cardan | 1350 “One-Ton” |
|---|---|---|---|
| Max Angle Tolerance | <15° | 20–25° | 30°+ |
| Serviceable (Grease?) | No | Yes | Yes |
| Strength Rating | Moderate | High | Very High |
| Clearance (Lifted) | Poor (2012+) | Good | Good |
| Cost (Estimate) | $350–$450 | $500–$750 | $700–$1 000+ |
| Ideal Use Case | Stock JKs | 2–3.5″ lifts, 33s | 35s+, high HP |
Fix the angles, save the joints: geometry mods that keep your shaft alive
A stronger drive shaft only solves part of the problem. If your axle geometry is off, you’ll keep burning through joints no matter how tough the shaft is. Here’s how to get things lined up right.
Adjustable control arms fix pinion and caster
Lifting a JK pushes the front pinion angle upward, which steepens the drive shaft angle. That strains the joint. Adjustable lower control arms or correction brackets tilt the pinion back down, lining it up better with the shaft.
At the same time, you can correct caster to sharpen your steering and help prevent death wobble. Don’t cut corners here. Misaligned geometry kills more drive shafts than weak parts ever will.
T-case drops are a shortcut. Link correction is the real fix
Spacers under the transfer case can reduce drive shaft angle, but they come with downsides. You lose belly clearance and risk throwing off the shifter alignment. It’s a quick patch, not a real solution.
Longer control arms or relocation brackets do the job right. They keep the drive shaft in the right range without sacrificing off-road clearance or causing new problems.
Exhaust clearance is critical on 2012 and newer
On 2012 to 2018 JKs, the front drive shaft runs close to the exhaust crossover. Lift the suspension and the stock shaft can hit the pipe during droop. That contact ruins the boot and bakes the grease.
You can fix it two ways. Add an exhaust spacer to drop the pipe, or install a smaller aftermarket shaft with more clearance. Skip this step and you’ll end up with a cooked CV joint before the trail day’s over.
Two-door JKs need longer slip travel
The shorter wheelbase on two-door JKs means the drive shaft has less room to move. Once you lift it, the stock shaft can bottom out when the suspension compresses or overextend on full droop. That jams the slip yoke and puts stress on the transfer case.
Upgraded shafts with longer slip travel solve the problem. They let the suspension flex without binding up or snapping under pressure.
Maintenance that actually matters: How to make your drive shaft last
Even the toughest shaft out there won’t hold up if you let it run dry or ignore the early signs of trouble. A little upkeep goes a long way toward keeping your Jeep off the trailer and on the trail.
Grease it like you mean it
If your aftermarket shaft has grease fittings, use them. Hit the U-joints and the CV center ball every oil change. If you’ve crossed water or slogged through mud, grease it again.
Don’t stop when you see a dab of lube; keep pumping until clean grease pushes out from every seal. That flushes out grit, sand, and water before they grind the joint apart.
Check the boots after every trail run
After a day on the rocks or in the mud, crawl underneath and check every boot. Look for splits, bulges, or signs of fresh grease thrown onto the frame or skid plate. A torn boot doesn’t scream. It just leaks, and once the grease is gone, the joint won’t last much longer.
Hear a new noise? Don’t ignore it
A squeak, buzz, or clunk that wasn’t there yesterday needs a look. Drive shaft problems don’t fix themselves, and they usually get worse fast. Catch it early and you might just need grease or a new joint. Wait too long and you’re looking at snapped yokes, bent tubes, or a cracked transfer case.
Bigger tires and new gears mean more strain
If you’ve stepped up to 35s or dropped in deeper gears like 4.88s, your stock drive shaft is under more load than it was built for. More torque and faster shaft speeds beat up joints and welds. Add power or axle weight, and you need a shaft that’s built to match the new setup.
More trail time, less downtime; habits that keep your shaft in one piece
Most drive shaft failures aren’t caused by junk parts. They come from how you drive. You can crawl, climb, and sling mud all day, just don’t act like your driveline is bulletproof.
Ease into the throttle when you’re in low range
Low-range throws torque fast. If you stomp the gas from a stop, that jolt slams into the joints and slip yoke. Ease into it instead. Whether you’re climbing, dragging through mud, or pulling out of a hole, smooth throttle saves parts and keeps things turning without shock load.
Never crank turns on pavement with lockers still on
Locked axles and sharp turns on dry pavement put serious stress on the drive shaft. The tires fight each other, and that binding force travels straight up the line.
Add sticky rubber or re-geared axles, and it gets worse. Always unlock before turning if you can. If you’re stuck in lock, take wide arcs and stay light on the throttle.
Let the belly skid take the hit, not the drive shaft
If you’re climbing something sketchy and metal’s going to scrape, aim to land on the skid. That’s what it’s built for. The shaft isn’t. One hard smack can bend the tube, crack a weld, or even snap a joint if it’s spinning. Pick your line like the shaft depends on it, because it does.
Skip the breakdowns: build it right, keep it greased, and fix your geometry
The Jeep JK front drive shaft isn’t just a maintenance item. It’s a setup check. Get the angles wrong, leave it dry, or run the stock shaft with a tall lift, and you’ll spend more time under the Jeep than behind the wheel.
The stock shaft can’t take much more than a mild lift. On 2012 and newer JKs, the exhaust clearance alone guarantees early boot failure. Go past 2.5 inches of lift or bolt on 35s, and the Rzeppa joint turns into a weak spot waiting to crack.
A 1310 double-cardan works for most weekend trail rigs. Step up to a 1350 if you’ve got more torque or run tougher trails. Make sure the joints are greasable, check your slip length, and pay close attention to short-wheelbase two-doors; those need the extra travel.
Even with all that dialed in, it still comes down to angles, maintenance, and how you drive. If your geometry’s off or you’re dragging the shaft over rocks, no upgrade will save it. Adjustable control arms, regular greasing, and smart habits are what keep it spinning strong.
Sources & References
- Adams Driveshaft – Troubleshooting Your Jeep’s Driveline and Driveshaft
- Jeep Momma – Tom Wood’s Custom Driveshaft Upgrade
- Clayton Offroad – Jeep Wrangler JK Front Driveshaft Info
- ExtremeTerrain – When to Upgrade Your Wrangler’s Driveshaft
- ExtremeTerrain – Mammoth Rzeppa CV Joint Kit (07–18 JK)
- Amazon – Teraflex Factory Replacement Kit (JK Rzeppa CV)
- Moog – Signs of a Failing Driveshaft
- YouTube – Symptoms of a Worn or Failing Driveshaft
- Driveshaft UK – Common Signs of Driveshaft Problems
- Reel Driveline – Maintenance & Care Articles
- JL Wrangler Forums – 3” Lift and Driveshafts
- Reddit – Driveshaft Help Jeep JK
- JL Wrangler Forums – Driveline Failure Predictions
- LiftedJeeps – How Lifting Affects Jeep Handling and Wear
- Reddit – Driveshaft Help (JK)
- eBay – OEM JK Front Driveshaft Listing
- Tom Wood’s – 1310 vs. 1350 Joint Comparison
- YouTube – Maintenance Tips for First-Time Jeep Owners
- Texas Truck Works – Solving JK Driveshaft Issues
- Adams Driveshaft – JK 1350 Driveshafts
- Adams Driveshaft – Jeep JK Driveshaft Products
- Tom Wood’s – JK Driveshaft Collection
- Tom Wood’s – Choosing 1310 vs. 1350 for Jeep JK
