If you’ve ever had a customer roll in with their TPMS warning light glaring at them from the dash, you know exactly why accurate TPMS programming matters. The Tire Pressure Monitoring System (TPMS) isn’t just another dashboard icon—it’s key to safety, fuel economy, and keeping your customers happy. When it’s not working right, trust me, they’ll notice.
Here’s where Autel TPMS programming steps in. Autel’s tools let you configure, clone, and update TPMS sensors quickly and accurately. Whether you’re dealing with dead sensors, tire rotations, or seasonal tire swaps, getting TPMS right keeps your customers safe and your workflow smooth.
In this guide, we’ll break down exactly what Autel TPMS programming involves, explain why mastering it makes sense for your shop, and give you clear, no-nonsense steps to handle the most common scenarios you’ll encounter.
Getting Familiar with Autel’s TPMS Tools

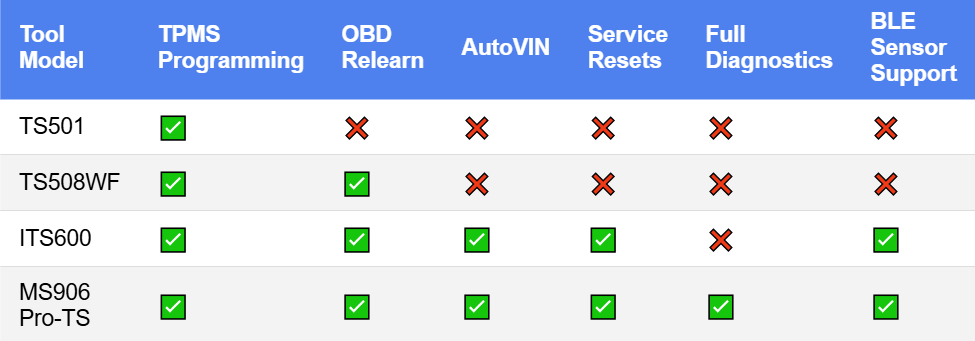

Choosing the Right Autel Tool for Your Shop
Autel makes a range of TPMS tools, each aimed at different types of automotive shops. Let’s simplify this and cut straight to what you need to know:
Entry-Level Tools (TS501, TS508WF)
If your shop mostly handles tire swaps, basic sensor replacements, or routine TPMS checks, these handheld devices are exactly what you need. The TS501 covers essential tasks—activating sensors, reading IDs, and performing basic relearns.
The newer TS508WF takes it a step further with Wi-Fi updates, faster speed, and more intuitive menus, making your workflow quicker and simpler.
Think of the TS508WF like upgrading from a flip phone to a smartphone. Same basic idea, just much smoother to use.
Mid-Level Tablets (ITS600, TS900)
When your workday includes more advanced TPMS jobs, like VIN-based sensor ID programming, multiple system resets, or servicing late-model vehicles, these tablets step up your game.
The ITS600 and TS900 offer tablet-style interfaces, better graphics, and a bigger, clearer display. These tools are ideal if you need reliable updates and consistent performance without frustration.
Advanced Diagnostic Platforms (MS906 Pro-TS, MP808TS)
If your shop handles complicated diagnostics or full vehicle scanning beyond just tires, Autel’s advanced platforms like the MS906 Pro-TS and MP808TS combine TPMS capability with full-service diagnostic power. You can perform active tests, ECU coding, and detailed diagnostics alongside TPMS tasks—all with one tool.
These devices are like the Swiss Army knives of automotive diagnostics—perfect for technicians who need an all-in-one solution without compromise.
Autel MX-Sensors—The Reliable Sensors Behind the System
No TPMS tool matters if the sensors themselves aren’t up to the job. Autel’s MX-Sensors cover just about every vehicle out there. Available in rubber snap-in or metal clamp-in varieties, they’re fully programmable and built to meet or exceed factory standards.
Recently, Autel added Bluetooth Low Energy (BLE) sensors specifically for electric vehicles like Teslas. With a frequency of 2.4 GHz, these BLE sensors communicate smoothly with newer vehicle systems, ensuring accurate monitoring without hassle.
Bottom line: Autel’s TPMS solutions are built to be flexible, reliable, and future-ready, making your life easier and your customers happier.
How Autel TPMS Tools Actually Talk to Your Vehicle
Activating Sensors—The First Step to Accurate TPMS
Autel tools communicate with TPMS sensors by sending out a low-frequency signal—think of it as a wake-up call. When your tool sends this signal, the sensor “wakes up” and replies back with essential info like its unique ID, tire pressure, temperature, and battery status. This quick handshake lets your Autel tool verify each sensor is alive and kicking.
Some older cars might still use magnets or specific activation sequences, but Autel guides you clearly through those, so you won’t get stuck guessing.
Using OBDII for Direct ECU Communication
Here’s where things get interesting. Many Autel tools plug directly into your vehicle’s OBDII port, allowing them to talk directly with the car’s TPMS control module. This lets you quickly grab sensor IDs, clear trouble codes, or even write new IDs directly into the vehicle’s memory.
But there’s a catch—not all cars support OBD-based relearns. Older Japanese vehicles, for example, might not allow this kind of communication, forcing you to use alternative relearn procedures. Knowing your vehicle makes this step easy and frustration-free.
Communication Protocols—What’s Happening Behind the Scenes
Autel tools support a range of common automotive communication protocols—like CAN, ISO9141-2, and ISO15765—which are basically languages your car understands.
For newer vehicles, especially electric models like Tesla, Bluetooth Low Energy (BLE) comes into play, requiring specialized sensors and updated Autel firmware.
Getting familiar with these protocols means you won’t waste time troubleshooting failed communications—because you’ll already know how to speak your car’s language clearly.
Autel TPMS Programming Methods—Choosing the Right Technique
Auto Create—The Fast Track for Multiple Sensors
Ever had to quickly program a full set of new TPMS sensors for a customer’s car? Auto Create is your best friend here. Just place your blank Autel MX-Sensors near your tool, hit a few buttons, and it automatically generates new, unique IDs for all sensors at once. It’s perfect when you’re swapping all four tires or dealing with seasonal tire sets.
Just remember—after Auto Create, you’ll still need to perform a relearn step to sync the new IDs with the car’s ECU.
Copy by Activation—Simple Cloning for Quick Replacements
If you’ve got a sensor that’s still alive but damaged or worn out, Copy by Activation saves you time. You simply activate the old sensor with your Autel tool, copy its ID, and write it directly onto a new MX-Sensor. This trick lets you skip the entire relearn process because the car never even knows you swapped sensors.
It’s like getting a duplicate key made—quick, painless, and ready to go.
Copy by OBD—Your Backup Plan When the Sensor is Dead
But what if the old sensor won’t activate at all? That’s where Copy by OBD comes into play. Connect your Autel tool to the vehicle’s OBDII port, pull the sensor ID directly from the ECU memory, and program your new sensor with the original ID. This method often eliminates the need for a relearn step entirely.
Manual Input—Reliable but Old-School
If all else fails—maybe you have the original sensor ID from service logs or printed right on the sensor—you can manually input the ID into your Autel tool. It might feel a bit outdated, but it’s still reliable and straightforward.
Just type in the sensor’s ID, write it onto a new sensor and perform a quick relearn. Simple, direct, and dependable.
Choosing the right method depends entirely on your specific situation. But once you’ve mastered these four techniques, you’ll breeze through TPMS jobs like a pro.
Step-by-Step Autel TPMS Programming—How to Do It Right Every Time
Step 1: Select the Vehicle—Avoid Mistakes Early
Start by clearly identifying the car you’re working on—year, make, model, and even trim. Tools like the Autel ITS600 make this incredibly easy with AutoVIN.
Just plug it in, and the tool quickly recognizes the car, saving you the headache of manual entry. Misidentifying the vehicle at this stage can send you chasing problems later, so take a moment to get it right.
Step 2: Run a Quick Diagnostic Check
Before programming, perform a sensor scan. Make sure you activate each sensor to see if they respond properly. Check for trouble codes or sensor issues right away.
If you find problems here—like sensors that won’t respond or low battery warnings—handle them before moving forward. This quick diagnostic saves time later when you’re trying to figure out why your relearn won’t work.
Step 3: Program Your Sensors
With your diagnostics done, it’s time to program your new sensors using your chosen method (Auto Create, Copy by Activation, Copy by OBD, or Manual Input). Keep other sensors clear while programming to avoid cross-talk—otherwise, you might accidentally write data to the wrong sensor.
If you’re replacing multiple sensors, use Auto Create to quickly assign new IDs. If you’re swapping just one, cloning the ID through Copy by Activation is your fastest route.
Step 4: Install Your Programmed Sensors
Once programmed, install your sensors into the wheels. Be sure to tighten them according to the vehicle’s torque specifications to prevent leaks. After installation, balance the tires to avoid vibrations or premature tire wear.
Skipping this step often leads to unhappy customers returning with vibration complaints. Take the extra few minutes—your reputation will thank you.
Step 5: Perform a Relearn Procedure
Now that the sensors are programmed and installed, your vehicle needs to recognize them. This is known as the relearn procedure, and it varies widely between makes and models:
Some cars automatically relearn sensor IDs after driving a short distance (typically around 10-15 minutes above 25 mph).
Others, like certain Toyota or Honda models, require an OBD relearn. You’ll plug your Autel tool into the vehicle’s diagnostic port to directly write sensor IDs to the ECU.
Many GM and Ford vehicles require a stationary relearn involving ignition cycling, brake pedal presses, or even pressing key fob buttons.
Double-check your specific vehicle’s relearn process. Missing this step is where many techs get stuck, causing that pesky TPMS light to stay lit.
Step 6: Final Verification
After the relearn, perform one last scan. Ensure the TPMS warning light turns off and that each sensor is reading correctly. If the TPMS light stays on, quickly recheck your sensor IDs and relearn steps—chances are, something small was missed along the way.
Confirming everything now avoids an irritated customer returning with the same problem, and helps your shop maintain trust and reliability.
Once you’ve mastered these six clear steps, TPMS programming will become second nature—faster, easier, and less frustrating every time.
Troubleshooting TPMS Issues—Solving Problems the Right Way
Sensor Won’t Activate? Let’s Find Out Why
If you’re pressing your Autel tool’s activation button and getting nothing but silence, something’s definitely off. Usually, this means one of three things:
• The sensor battery is completely dead.
• You’ve got the wrong sensor frequency (315 MHz vs. 433 MHz).
• You’re holding the tool too far from the sensor itself.
First, double-check your sensor type and frequency. Autel’s “Check Sensor” function is perfect for this, quickly telling you whether your sensor is alive and using the right frequency. If the sensor is correct but unresponsive, it’s probably just dead—swap it out and keep moving.
Programming Fails Midway—Here’s What’s Happening
There’s nothing more frustrating than having a programming session suddenly stall halfway through. Usually, this comes down to one of these quick-fix scenarios:
• You selected the wrong vehicle profile by mistake.
• The sensor you’re trying to program has been programmed before and is locked.
• Your Autel tool needs a firmware update.
Quick solutions? Make sure you’ve got the right car profile—this one’s a common slip-up. Also, avoid reusing sensors that aren’t blank or haven’t been properly reset. Still stuck? Quickly update your Autel tool firmware via Wi-Fi. It often clears up compatibility issues instantly.
Relearn Not Completing? Try This Instead
If you followed every step and your relearn procedure refuses to finish, you’re not alone. Certain vehicles can be tricky. Sometimes you simply need to drive the vehicle at a moderate speed (25 mph+) for at least 10 minutes to finalize the relearn.
Still no luck? Switch to an OBD-based relearn. Plugging directly into the ECU often solves issues that the automatic or stationary methods just can’t handle.
TPMS Light Stubbornly Staying On—Quick Checks to Make
When the TPMS light won’t shut off, don’t panic. Usually, one sensor ID isn’t matching up correctly. Double-check each sensor’s ID—especially if you manually entered them.
For European models or luxury brands, you might need an additional step—like reinitializing TPMS through the car’s infotainment system or performing a module reset with your Autel tool.
Sorting these common troubleshooting scenarios quickly keeps your shop efficient and your customers confident in your work.
Vehicle-Specific TPMS Tips—Handling the Common Tough Spots
Toyota Corolla (2014–2019)—Avoid the Common Relearn Headache
If you’ve tackled a TPMS job on a Corolla from this era, you know the drill: Auto relearn usually won’t do the trick. Instead, you’ll need to use your Autel tool and plug directly into the car’s OBDII port. This writes sensor IDs directly to the ECU, ensuring the vehicle recognizes them immediately.
Don’t forget a quick test drive afterward—just a short 10-15 minutes above 25 mph typically finalizes the process. Skipping this simple step often leaves the TPMS warning glaring back at your customer.
Ford F-150 (2015–2020)—The Easy Way and the Easier Way
The good news? Many newer F-150 models support a manual relearn using just the ignition cycle and brake pedal. It’s straightforward: turn the ignition on/off three times, press and release the brake pedal, then activate sensors in a clockwise sequence starting at the front-left wheel.
But let’s be honest—sometimes this manual method just won’t stick. Your Autel tool makes the OBD relearn method quicker and far more reliable, saving you time and avoiding repeat frustrations.
GM Trucks (Silverado, Sierra)—Simplifying the Sequence
GM trucks have their quirks. For Silverado or Sierra models, you’ll typically trigger a relearn by cycling the ignition, pressing the brake pedal, and using either a key fob button or sensor activation sequence. Just remember: GM trucks always require activating sensors clockwise, beginning from the front-left tire.
Heads-up: For newer models (2020 and beyond), an advanced Autel tablet like the ITS600 or MS906 Pro-TS is often necessary to complete the relearn through OBD. Older or simpler Autel tools might leave you stuck, causing unnecessary frustration.
Understanding these quick vehicle-specific tips prevents repeat work, saves your shop time, and ensures your customers drive off satisfied every single time.
The Good and the Not-So-Good—Weighing Autel’s TPMS Solutions
What Makes Autel TPMS a Winner in Most Shops
Autel’s TPMS solutions are popular for a good reason—they simplify your job. With just two universal MX-Sensors covering nearly all vehicles, you spend less time hunting for vehicle-specific parts.
Quick sensor programming and ID cloning mean faster turnaround, fewer relearn steps, and happier customers driving out sooner.
Plus, Autel constantly updates its tools. New protocols? No problem. Regular firmware updates mean you’re usually ahead of the curve rather than playing catch-up.
But Keep These Limitations in Mind
No system is perfect, and Autel TPMS has a few areas where you need to be careful. Frequent updates mean you’ll need to keep your tools regularly connected to Wi-Fi—skipping updates could cause unexpected compatibility issues.
Also, be cautious with newer or premium vehicles—especially electric models like Teslas. Some require BLE (Bluetooth Low Energy) sensors and advanced Autel tools with updated firmware. If your shop handles many high-end vehicles, staying current is key to avoiding frustrating setbacks.
Knowing these strengths and potential hiccups upfront means fewer surprises, smoother workflow, and a better overall experience for you and your customers.
Final Thoughts—Making Autel TPMS Programming Work for Your Shop
Mastering Autel TPMS programming isn’t just another skill—it’s a must-have for any modern auto shop. When done right, TPMS programming means fewer comebacks, happier customers, and less time wasted chasing down errors.
The good news is, with Autel’s straightforward tools and reliable MX-Sensors, handling sensor replacements, seasonal tire swaps, and tricky relearn procedures becomes routine rather than frustrating.
Sure, you’ll occasionally face tricky vehicle-specific procedures or minor hiccups—but knowing how to quickly troubleshoot makes those moments manageable.
Bottom line? Stay current with your Autel updates, choose the right programming method for each situation, and keep your process clear and organized. Do this, and your shop will breeze through TPMS jobs faster and smoother than ever before.
