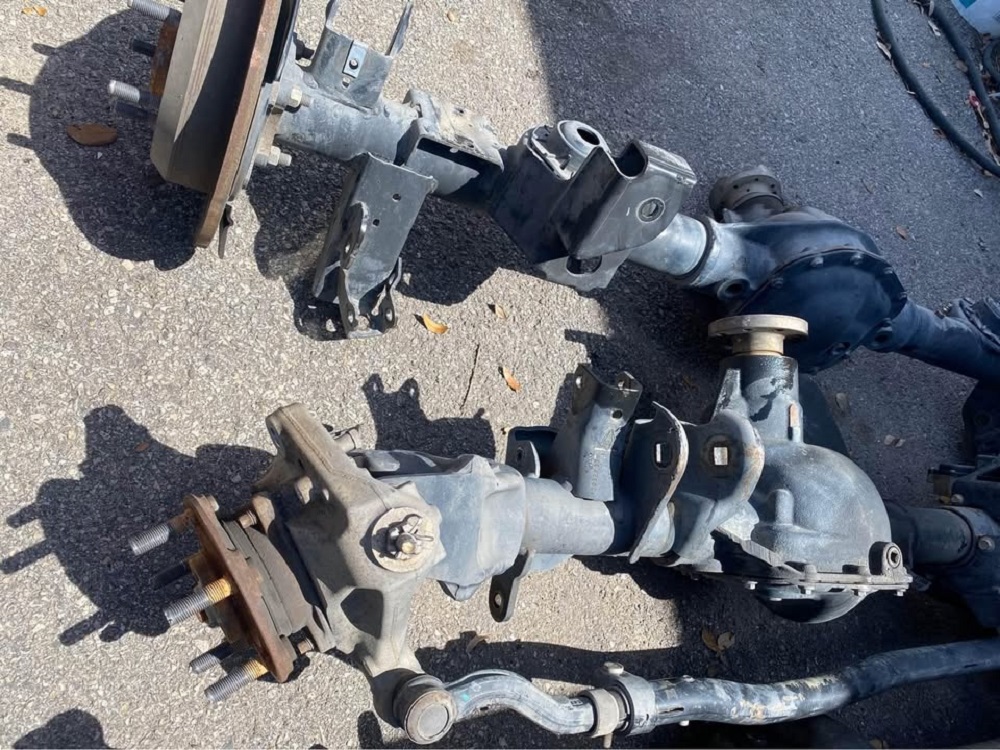

If you’re working on a Dana 30 axle, getting the torque specs right isn’t just about following a chart—it’s the difference between a smooth ride and a costly failure.
Found in Jeep models like the CJ, YJ, TJ, XJ, and early JK, the Dana 30 is tough, but over-tightening or under-torquing bolts can lead to leaks, premature wear, or even gear damage.
This guide covers the key torque specs for differential components, axle shafts, and fasteners, so you can button everything up with confidence.
While these numbers apply to most Dana 30 setups, always double-check with a service manual for your specific year and model. Let’s get to it.
Differential Assembly and Internal Components
When assembling a Dana 30 differential, precision matters. The ring gear, carrier bearings, and pinion all have specific torque values to keep everything in place without causing excess stress. Let’s go through the key specs and why they matter.
Ring Gear Bolts
• Torque Spec: 55–80 ft-lbs (varies by model and gear manufacturer). Always follow the torque specification provided in the service manual or gear set instructions.
• Why It Matters: These bolts hold the ring gear to the carrier, and uneven or excessive torque can lead to gear misalignment or failure.
• Best Practice: Tighten in a star pattern to ensure even pressure, and use Loctite 271 (red) to prevent loosening under load.
Carrier Bearing Caps
• Torque Spec: 55–65 ft-lbs (depends on the model and whether it’s a high-pinion or standard Dana 30). Always refer to the specific factory service manual.
• Why It Matters: These caps secure the carrier bearings, which position the ring and pinion. Incorrect torque can lead to premature bearing wear or excessive gear backlash.
• Best Practice: Mark the caps before removal—they’re side-specific and must go back exactly as they came out.
Pinion Nut
• Torque Spec: Pinion bearing preload isn’t a fixed ft-lb value; it’s measured in inch-pounds of rotating resistance. For new bearings, the preload should be between 14 and 19 in-lbs, while used bearings should fall within 6 to 7 in-lbs.
If a crush sleeve is used, the pinion nut may need 160 to 250 ft-lbs to fully seat, but the preload must still be checked to ensure proper adjustment.
• Why It Matters: The pinion nut holds the yoke and affects the bearing preload. Over-tightening can crush the bearing, while under-tightening can lead to play in the gears.
• Best Practice: Always follow preload torque values (measured in inch-pounds of rotating resistance) rather than relying on a single ft-lb spec.
External Cover and Related Fasteners
A leaky or improperly sealed differential cover can lead to oil loss, gear wear, and eventual failure. Getting the torque values right here prevents unnecessary headaches down the road.
Differential Cover Bolts
• Torque Spec: 12–17 ft-lbs (factory spec for most Dana 30 applications). Some aftermarket covers may require up to 25 ft-lbs—check the manufacturer’s recommendation.
• Why It Matters: These bolts hold the cover against the axle housing, sealing in the gear oil. Uneven torque can lead to leaks while over-tightening can distort the cover and damage the gasket.
• Best Practice: Tighten in a cross-pattern to ensure even clamping force. If using RTV sealant instead of a gasket, let it cure properly before adding fluid.
Drain/Fill Plug (If Equipped)
• Torque Spec: 25–30 ft-lbs
• Why It Matters: Some Dana 30 covers feature a fill or drain plug. Over-tightening can strip the threads or make future maintenance a hassle.
• Best Practice: A snug fit is enough—don’t crank down too hard. Always check the fluid level after torquing the plug.
Axle Shaft-Related Fasteners
When it comes to keeping your Dana 30 running smoothly, proper torque on axle shaft fasteners is key. Loose or over-tightened bolts can lead to premature wear, vibrations, or even component failure.
Axle U-Joint Strap or Yoke Bolts (If Present)
• Torque Spec: 14–20 ft-lbs
• Why It Matters: These bolts secure the u-joint at the yoke, ensuring smooth rotation and proper drivetrain alignment. Over-tightening can distort the yoke, while under-tightening can lead to slippage.
• Best Practice: Use thread locker on these bolts to prevent them from backing out due to vibration.
Axle Hub Nut
• Torque Spec: The recommended torque varies by model. For Jeep XJ, TJ, and YJ, it is 175 ft-lbs, while Jeep JK models from 2007 onward require 100–120 ft-lbs.
Always verify with your vehicle’s service manual and the hub manufacturer’s recommendations to ensure proper installation.
• Why It Matters: The hub nut sets the preload for the wheel bearings. Incorrect torque can cause premature bearing failure or excess play in the hub assembly.
• Best Practice: Always use a torque wrench to ensure accuracy. If you’re reusing the nut, check for signs of wear or damage before reinstalling.
Ball Joints and Steering Knuckle Fasteners
The steering knuckle and ball joints play a critical role in your Dana 30’s handling and durability. Proper torque ensures stability, prevents excessive wear, and keeps everything aligned for smooth steering.
Upper and Lower Ball Joint Nuts
• Torque Spec: For Jeep XJ, TJ, and YJ models, the upper ball joint should be torqued to 55–75 ft-lbs, while the lower ball joint requires 75–100 ft-lbs.
On Jeep JK models from 2007 onward, the upper ball joint torque spec is 70 ft-lbs, and the lower is 105 ft-lbs. Aftermarket ball joints may have different torque requirements, so always refer to the manufacturer’s instructions for accuracy.
• Why It Matters: Ball joints allow for controlled movement between the axle and steering components. Under-tightening can lead to loose steering and premature wear, while over-tightening can cause binding and stress fractures in the knuckle.
• Best Practice: Always use a torque wrench and verify manufacturer-specific values for your Jeep’s model year.
Steering Knuckle Bolts (If Applicable)
• Torque Spec: For Jeep XJ, TJ, and YJ models, the recommended torque is 35–45 ft-lbs, while Jeep JK models from 2007 onward require 45–50 ft-lbs. In off-road environments, applying anti-seize compound can help prevent corrosion and make future removal easier.
• Why It Matters: These bolts keep the knuckle securely attached to the axle. A loose or misaligned knuckle can result in steering play, vibrations, and uneven tire wear.
• Best Practice: Apply anti-seize compound if you anticipate future removals, especially in off-road environments where corrosion is a concern.
Benefits and Limitations of Proper Torque Specs
Getting the torque settings right on a Dana 30 isn’t just about tightening bolts—it’s about keeping everything in place under stress, reducing wear, and preventing failures that could leave you stranded.
Why Proper Torque Matters
• Prevents Premature Wear – Over-tightened fasteners can crush bearings or distort components, while under-tightened ones can allow movement that leads to excessive wear.
• Maintains Differential Alignment – Carrier bearings, ring gear bolts, and pinion settings need exact torque values to avoid gear whine, uneven wear, or catastrophic failure under load.
• Ensures Steering and Suspension Stability – Properly torqued ball joints and knuckle bolts keep everything tight and aligned, preventing steering slop or dangerous wheel play.
• Reduces the Risk of Fluid Leaks – Over-tightening the diff cover bolts can warp the housing, while under-tightening leads to slow leaks that can eventually drain the differential dry.
Limitations and Variability
• Model-Specific Adjustments – Some years and versions of the Dana 30 (like the high-pinion vs. standard rotation models) may have slightly different torque recommendations, especially for pinion preload.
• Impact of Aftermarket Parts – If you’ve upgraded gears, installed a locker, or replaced axle shafts, always check manufacturer-recommended torque specs. Some aftermarket components require different settings.
• Thread Condition Matters – Corroded or stretched bolts won’t hold proper torque, and lubricated vs. dry fasteners can change how much clamping force is applied.
Final Thoughts
Torque specs might not be the most exciting part of working on your Dana 30, but they’re essential for reliability.
Always check your model year and version (high-pinion vs. low-pinion, JK vs. earlier models), pinion preload values in inch-pounds instead of a static torque figure, and aftermarket requirements—upgraded gears, lockers, ball joints, and covers may need different settings.
Proper torque prevents leaks, misalignment, and premature wear, so verify your specs before tightening. Whether you’re swapping gears, replacing axle shafts, or sealing the diff cover, using the correct values keeps everything secure and running smoothly.
A well-torqued Dana 30 means fewer headaches and more confidence behind the wheel—keep it precise, and your front axle will handle whatever terrain comes your way.
