Dana 70 Vs. Dana 80: Strength, Specs & Which One Fits Your Build

Hauling a 14,000-lb gooseneck with your ¾-ton diesel through mountain grades? That rear axle better not flinch. Axles are the ones doing the dirty work when torque surges, loads shift, and terrain turns ugly.

They carry the weight, take the twist, and keep your wheels turning when everything else says no. Whether you’re crawling rocks in a lifted JK or dragging a skid steer on a bumper pull, a weak axle’s where it all comes apart.

Ring gear size and axle tube thickness matter, but they’re not the whole story. What really counts is how well the entire setup, gears, bearings, shafts, and housing, holds up when the stress kicks in.

Push a mid-duty axle too far, and you’ll find out fast what fatigue looks like: snapped shafts, chewed-up splines, scorched bearings, or worse, a housing that lets go completely.

That’s why picking between a Dana 70 and Dana 80 isn’t spec-sheet trivia. It’s the line between a setup that holds together and one that folds when the pressure hits.

Dana 70 vs. Dana 80: Built for different battles

Same family, different fights. The Dana 70 showed up in 1957, built for ¾-ton and light 1-ton workhorses. You’d find it under Dodge W300s, Ford F-350s, and Chevy C30s, tough trucks that hauled hard. With a 10.5-inch ring gear and 3.5 to 4-inch axle tubes, it was solid for its time.

Over the years, it evolved into heavy-duty versions like the 70HD and Super 70, plus lighter-duty spins like the 70U and 70B. Some even got front axle duty in bigger 4×4 rigs like the Kodiak and Topkick.

The Dana 80 didn’t show up until 1988, but when it did, it came loaded for war. Designed strictly for rear-axle use, it packs an 11.25-inch ring gear, thick axle tubes, and a factory GAWR up to 11,000 lbs.

You’ll see it in Ram 3500s, Ford F-450s, and other big-block bruisers. No front-axle variant, this one’s all about putting down power in back.

Here’s a quick side-by-side before we crack open the guts:

These aren’t just numbers on a chart. They tell you where each axle belongs and how much abuse it can take before it taps out.

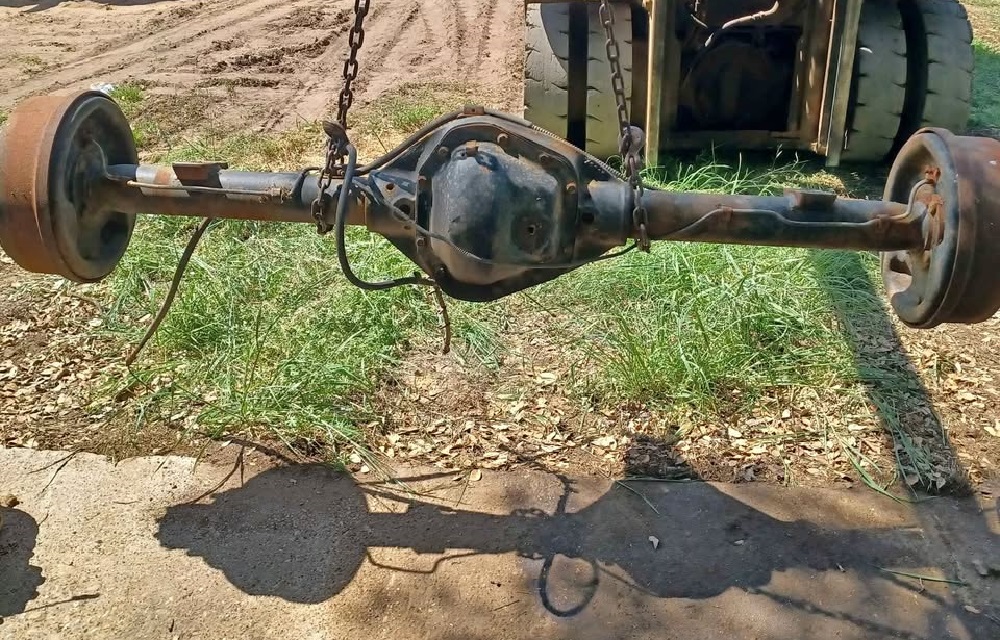

Dana 70 breakdown: old-school strength with a few weak links

Before the Dana 80 hit the scene, the Dana 70 carried the heavy loads. It’s still a workhorse in most trucks, but if you’re pushing big torque or towing for a living, you’ll want to keep an eye on a few key spots.

Ring gear and tube design – Enough beef for most jobs

Most Dana 70s run a 10.5-inch ring gear, though Super 70 variants bump that up to 10.75 inches. Tube diameter usually sits at 3.5 inches, but the 70HD stretches it to a full 4 inches, closing the gap with the Dana 80.

Rear axles are always full-float, meaning the housing takes the load, not the shaft. That keeps things solid under pressure, especially in DRW setups.

Shaft sizes and spline counts – Strong, but all over the map

Shafts vary a lot depending on the year. Early models ran 23 splines, while later ones stepped up to 32 or 35 splines with 1.50-inch diameters. That’s plenty tough, but still short of the Dana 80’s stouter shaft options.

Lighter-duty versions like the 70U and 70B used smaller splines and softer pinion bearings. They worked fine in trucks that needed muscle, but not brute force.

Known weaknesses – Bearings can’t hang with today’s torque

Here’s where things get shaky. Some Dana 70s share differential bearings with the smaller Dana 60, and that’s where modern diesels start to push the limits.

Under repeated high loads, bearing cups can shift or “cock” inside the housing. That throws off preload, misaligns the gears, and eventually eats itself alive. It’s a known failure point on chipped diesels, heavy haulers, or trucks running oversized tires.

Think of it like an old boxer. Still hits hard, but the chin’s not what it used to be.

OEM usage and availability – Easy to find, but not all are built alike

Dana 70s had a long run, showing up in:

• Dodge W300s and Ram 2500/3500 (1958–2002)

• Ford F-250s and F-350s (1970s–early 2000s)

• GM C30s, K35s, and front axles in Kodiaks/Topkicks (2005–2009)

That makes parts and rebuild kits easy to find. But not all Dana 70s are created equal; some were built for abuse, others just for basic hauling. You’ve got to know which version you’re grabbing.

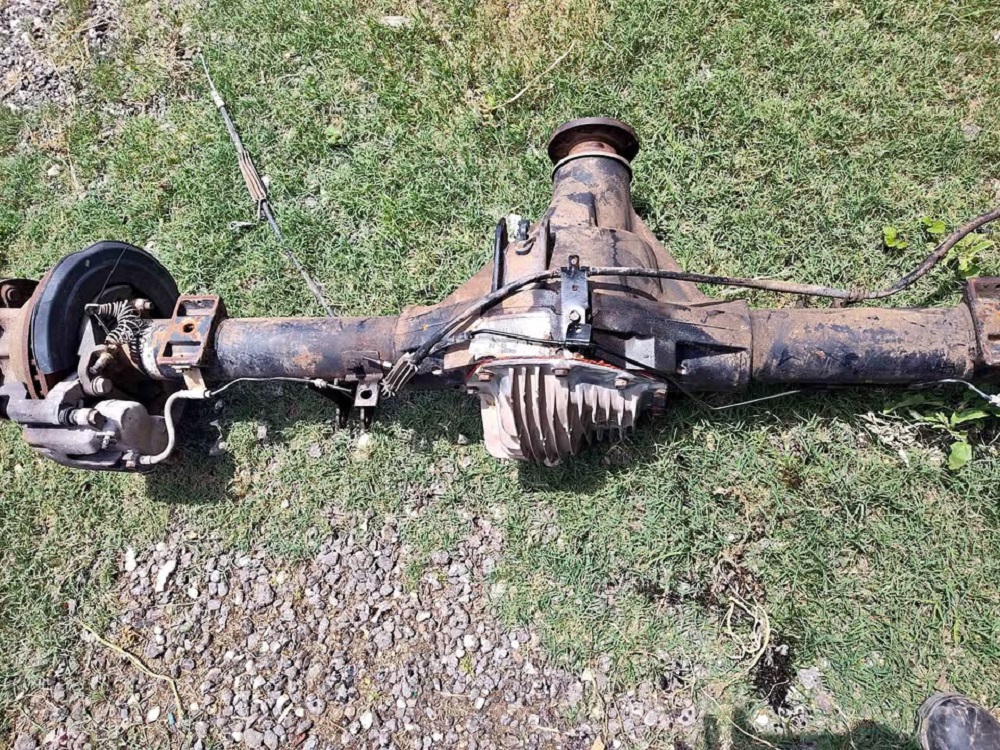

Dana 80 deep dive: built to haul harder, longer, stronger

If the Dana 70 was made for hard work, the Dana 80 was built to take a beating. It doesn’t flinch under pressure; it eats it for breakfast.

Ring gear and axle tubes – Thick, tough, and overbuilt

The Dana 80 runs an 11.25-inch ring gear that makes the 70 look small. The axle tubes? A full 4 inches across, often with 5/8-inch wall thickness. That extra beef matters when your tires weigh 100 lbs each and you’re dragging 20,000 lbs uphill.

There’s no front-axle version here. Every Dana 80 is rear-only and full-float, built to take the hit without passing it to the shafts.

Shaft and spline options – Built for serious torque

Most Dana 80s come with 35- or 37-spline shafts, up to 1.58 inches thick. Go aftermarket, and you can drop in 40-spline chromoly shafts that shrug off power like race gear.

Even the pinion steps up: 2.0 inches in diameter with 37 splines. More bite, tighter tolerances, and no wobble when things get rowdy.

Differential and bearing design – No soft spots here

This isn’t just a scaled-up 70. Dana redesigned the bearing layout from the ground up. Both differential and pinion bearings are bigger, eliminating the cocked cup issue that haunts older axles.

Even the stock Trac-Lok is tougher, built with four pinions instead of two. That means more grip, smoother torque transfer, and way less wear under load.

No flex, no fuss. It’s all business.

OEM roles and real-world use – Found under the biggest bruisers

You’ll find the Dana 80 under:

• Ram 3500s (1994–2002)

• Ford F-350 DRW and F-450 (1988–2016)

• GM C3500HD work trucks (1991–2002)

This isn’t just a heavy-duty axle; it was the factory go-to for trucks meant to stay maxed out. In many cases, the GAWR was limited by the tires or frame, not the axle itself.

So if you’re pulling over 15,000 lbs, running lockers, or towing in low range? The Dana 80 isn’t a luxury. It’s what keeps the rear end alive.

Side-by-side smackdown – where strength, size, and smarts pull them apart

Put the Dana 70 and Dana 80 side by side, and the gaps show up quick. These aren’t just spec sheet numbers, they’re the real-world limits of what your axle can take when torque spikes and weight stacks up.

Gear size, tubing, and shaft specs – beef where it counts

Everything on the Dana 80 is upsized, fatter pinion, stronger bearings, and thicker tubes. That extra mass isn’t just for show. It means more grip when torque slams through the driveline and less flex when the axle’s taking a pounding from the side.

Bearing layout – Dana 70’s weak spot

This is where things start to slip for the 70. Its differential and pinion bearings are borrowed from the Dana 60, which works until you throw a chipped Cummins on 37s and floor it uphill.

Eventually, the bearings can shift inside the housing, knocking out preload, skewing the gears, and tearing the diff apart from the inside. The 70HD adds spacers and tougher cups to fight it off, but the root issue still lingers.

Dana 80 doesn’t play that game. Bigger bearings, better seating, wider load surfaces, it’s built to stay aligned and locked in under heavy output. Fewer failures, less downtime, and no fighting to keep preload in check.

Torque ceilings and upgrade potential – the 80 just keeps going

A properly built Dana 70 with 35-spline shafts can handle just under 9,000 lb-ft of torque. Strong enough for most setups.

But a Dana 80? With 37- or 40-spline shafts, you’re looking at well over 11,000 lb-ft and room to climb. And since many came from the factory with derated GAWRs, they often hold up even better than the spec sheet lets on.

Which axle fits your mission – not every truck needs a tank

You don’t bring a sledgehammer to hang a picture. And you don’t need a Dana 80 just because it sounds meaner. The right choice comes down to what you drive, how hard you push it, and whether your truck spends its life on pavement, pasture, or rock-strewn trails.

Daily-duty diesel or light hauler? Dana 70 still gets it done

If your truck’s pulling modest loads, running highways, and only working hard on weekends, a solid Dana 70, especially a 70HD or Super 70, is still a solid choice. You’ll see them in:

• Ram 2500s and early Ram 3500s (1994–2002)

• Ford F-250 Super Dutys with gas engines or mild tunes

• Older Chevy C30s or GMC K35s hauling basic loads

Just keep the bearings fresh if you’re tuning diesels or towing heavy. Inspect them regularly, and plan to swap them out every 100 000–125 000 miles to stay ahead of trouble.

Goosenecks, dump trailers, or Class 4 frames? Go with the 80

Towing over 15,000 lbs, running a manual trans, or driving for dollars? Now you’re in Dana 80 territory. It’s not just the better choice, it’s the one that holds up when everything’s on the line.

• Ram 3500s and Ford F-350 DRWs doing serious towing

• F-450s and C3500HDs with upfit beds or flatbeds

• Diesel builds pushing hard with compound turbos or heavy flash tunes

This axle’s made for full-time haulers. When you’re climbing grades with a backhoe behind you, you want gear that doesn’t even blink.

Off-road builds and 4×4 setups? It depends where you want your strength

If you’re building a crawler with 40s, lockers, and deep gears, the Dana 80 brings serious muscle. Just remember it’s rear-only.

Need a matching front? The Dana 70’s got rare front-axle versions, found in rigs like the Kodiak and Topkick. They’re tough to hunt down, but they’re your only shot if you want a full 70/70 setup.

Budget vs. bulletproof – what it really costs over time

Dana 70s are easier to find and cheaper up front. You’ll see more of them in salvage yards, and parts are everywhere. But if you’re roasting bearings, leaking pinion seals, or twisting shafts, that “budget” axle can turn into a money pit.

Dana 80s cost more out of the gate, but they hold up better under real abuse. Fewer failures. Less wrench time. And when you’re towing 18 000 lbs in the heat, that kind of durability pays for itself.

Upgrades and mods – how far can each axle really go?

Stock isn’t the finish line. Whether you’re chasing more power, better grip, or stronger brakes, both the Dana 70 and Dana 80 can take a serious upgrade path. But one goes further before hitting its ceiling.

Gears, lockers, and shafts – every build starts here

Both axles offer broad gear ratio support. Dana 70s run everything from 3.07 to 7.17. Dana 80s cover 3.23 to 6.17. That gives you room to tune for highway hauls or low-speed crawling.

Lockers? No problem. Both take ARB air lockers, Detroit Lockers, and rebuilt Trac-Loks. Dana 70s top out around 35-spline setups. Dana 80s push further, accepting 40-spline builds with the right internals.

And don’t forget shafts. Swapping to chromoly boosts torque resistance across the board. The Dana 80 shines here; it’s got more options for oversized, high-output builds and can handle real abuse without flexing.

Brake kits and housing reinforcements – when stopping power matters

If you’re towing heavy or running DRWs, brakes become a priority. Dana 80s can take Wilwood-style lightweight kits, dual calipers, oversized rotors, and better-cooling setups like the Ultimate 80 kits. That’s a huge plus when you’re slowing down a 20,000-lb load on a grade.

Both axles can be reinforced with housing trusses, especially for off-road abuse. But Dana 80’s thicker tubes and stronger weld seams mean it flexes less to begin with and handles upgrades more cleanly.

Upgrade ceiling – Dana 70 can grow, but 80 grows bigger

You can build a tough Dana 70. But sooner or later, you’ll run into limits on housing strength, pinion diameter, or bearing load.

Dana 80’s design gives you more headroom. It’s built for 40-spline shafts, 2-inch pinions, oversized bearings, and real race-grade loads. So if your build includes big tires, dual calipers, turbo kits, or gear swaps, the Dana 80 handles the upgrades without flinching and without making you second-guess the axle.

Choosing the right axle for your build and your workload

Still stuck between a Dana 70 and Dana 80? Forget the spec sheets for a second. It really comes down to how much torque you’re throwing down, how often you’re hauling heavy, and how long you expect the axle to keep up.

Running a mildly built 1-ton that hauls now and then? A clean Dana 70, especially the 70HD or Super 70, can still do the job. Just don’t get lazy with the bearings, and don’t treat it like you’re driving an F-450 on overtime.

But if your truck’s dragging weight daily, living on job sites, or pulling hard with big tires and more boost than stock ever dreamed of, skip the guesswork.

Go Dana 80. The bigger bearings, thicker shafts, and stronger housings weren’t overkill; they were built because manufacturers knew exactly what kind of punishment these trucks take.

Here’s the final rundown:

The takeaway? The Dana 70’s still a solid axle with a proven track record, but it just wasn’t built for today’s diesels pushing 1,000 lb-ft or towing fifth wheels over 20,000 pounds.

The Dana 80 was. So build smart. When the weight hits, your axle either handles it or leaves you stranded with twisted steel.
