SM420 Vs. SM465: Crawl Ratios, Swaps & What Breaks First

Building a rig that crawls better than it cruises? You’re in the right place.

GM didn’t make the SM420 or SM465 for smooth shifts or gas mileage. These things are cast-iron tanks, made to haul trailers, dump gravel, and inch over rocks with zero drama. Decades later, they’re still gold for trail builds and drivetrain swaps.

But don’t let the similar names fool you, they’re not plug-and-play. The SM420 wins on crawl ratio and compact size. The SM465 brings more strength and broader parts support. If you’re picking between the two, we’ll break down what bolts up, what doesn’t, and what fails first.

1. Built for war rigs and workhorses long before overdrive was a thing

The SM420 launched in 1947 and kept grinding through 1967 in GM trucks, and well into the ’80s under military contracts. You’d spot it in half-ton pickups, two-ton stake beds, buses, dump trucks, even tractors. It wasn’t built for comfort. It was built for torque, traction, and never needing a tow.

Then in 1968, GM rolled out the SM465. It went into just about everything: C/K pickups, Blazers, Suburbans, one-ton dualies. By the square-body peak in the ’80s, it was the last manual standing. From 1988 to 1991, it was your only stick in the R/V series before the NV4500 took the baton in ’92.

These two gearboxes ruled GM’s manual game for decades, overlapping just long enough for builders to notice the changing of the guard.

2. Spec-for-spec, here’s how they stack up when it’s time to get dirty

You can’t pick a box until you know what’s in it. The SM420 and SM465 both wear cast iron, but the similarities end there, especially in gearing, shaft size, and swap quirks.

Here’s the sheet that transmission junkies live by:

The SM465 runs heavier and longer, but it brings more options, especially on the PTO and output side.

3. Crack open the case, and the differences get loud fast

They both wear cast-iron shells, but what’s inside separates the workhorse from the swap king. And these quirks aren’t just rebuild trivia; they decide how you mount, mod, and mash the gas.

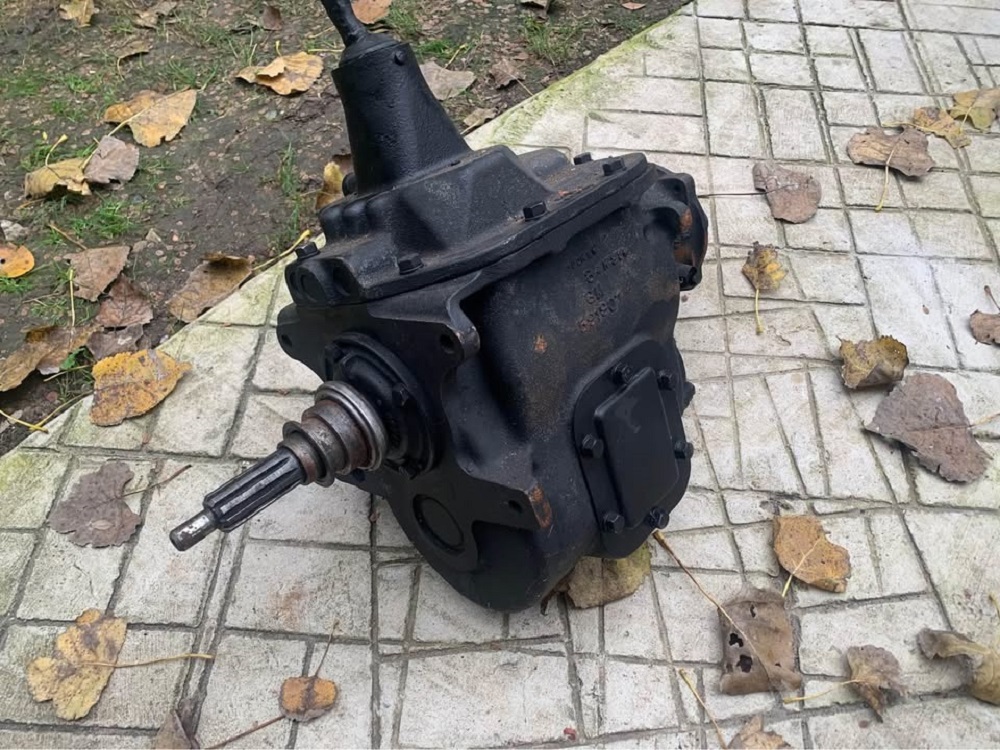

SM420’s trademark bulge and old-school bones

Start with the passenger-side bulge. That hump isn’t for looks; it hides the reverse idler gear and makes the SM420 easy to spot. Models from ’54 to ’67 added twin ribs along the same side for extra strength without beefing up the whole case.

But early ones, especially pre-’53, skipped the front input seal entirely. Translation: they’ll leak unless you retrofit with an aftermarket kit.

SM465’s extra girth and modern tweaks

The SM465 stands out with its thick 5⅛-inch bearing retainer. Great for strength. Terrible if you’re trying to bolt it to a GM car bellhousing, it won’t fit without machining the bore and trimming the retainer.

Post-’85 models added a hydraulic clutch setup, which makes pedal feel smoother in custom builds. And those twin PTO ports? Perfect if you’re running winches, pumps, or other gear off the box.

4. Granny gear math that makes or breaks your crawl ratio

Building for rocks, roots, or steep climbs? It all boils down to one number: your crawl ratio. That’s how deep your 1st gear gets once it’s multiplied through the transfer case and axle gears.

The formula that tells the truth

Crawl ratio = 1st gear × transfer case low × axle ratio.

Take a classic setup: SM420 with 7.06:1 first × Dana 300 at 2.62:1 × 4.56 axle = 84.2:1 crawl ratio

Now swap in an SM465 at 6.55:1 first: 6.55 × 2.62 × 4.56 = 78.2:1

That six-point gap matters. The SM420 lets you crawl slower, hold better control, and ease off the clutch on steep climbs or brutal terrain.

In hard rock work, even five points can mean the difference between stalling or crawling out.

5. Both are tanks, but only one gets rebuilt in under a weekend

The SM420 and SM465 have proven themselves on trails, farms, and scrapyards for decades. Neither one’s soft, but push them hard enough, and the weak spots show.

SM420’s tough shell and known failure point

The SM420 earned its “bulletproof” rep. The iron case takes abuse, and the deep granny gear eases clutch strain. But second-gear synchros are its Achilles’ heel.

They grind before they quit, and when they finally do, it’s teardown time. Since GM stopped making them in ’67, you’ll be scrounging for used parts if the synchro or input shaft goes.

SM465 bulks up where it matters

GM beefed up the SM465, thicker ribs, larger shafts, dual PTO ports. Most last past 200,000 miles before needle bearings on the countershaft start to whine. Rebuilds are simple, and with off-the-shelf parts everywhere, even a first-timer with a socket set can knock it out in a weekend.

Spline myth, debunked

Some say the 32-spline SM465 is stronger than the old 10-spline SM420 just because it’s got more teeth. Not quite. Strength comes from diameter, not tooth count. Most 10-spline outputs were just as stout. Unless you’re matching to a late NP205, spline count isn’t a deal-breaker.

6. Swapping’s not just what bolts up; it’s what clears and holds up on the trail

Swapping in an SM420 or SM465 sounds simple until you’re cutting driveshafts, machining bellhousings, or rigging clutch linkages. The devil’s in the fitment.

Adapters and driveline geometry can throw a wrench

Mounting to a transfer case like a Dana 300 or NP205? Adapters matter. The SM420 always needs one; it was designed for divorced 4WD setups, so mounting eats time and cash. In a Jeep CJ, expect to shift the rear driveshaft back 1.5 inches and the front forward the same.

The SM465 plays nicer with 32-spline NP205s, no adapter needed. But in that same CJ, it demands a 3-inch rear stretch and 3-inch front retraction. Not ideal if your shafts are already at their limit.

Bellhousing fit trips up more than one builder

Both boxes use GM’s four-bolt pattern. But the SM465’s fat 5.125-inch bearing retainer won’t clear a car bellhousing without machining. You’ll need to bore the bellhousing to 5.000 and possibly trim the retainer sleeve to 4.995. The SM420 drops in clean with no machine work.

Clutch linkage could be a deal-breaker

Mechanical linkage? Both work fine. But if you want hydraulic assist, only post-’85 SM465s came that way from the factory. The SM420 never did. If firewall space is tight or you’re picky about pedal feel, that alone might make the decision for you.

7. Neither was born for the freeway, but one has a better fix

Push either box past 65 mph with 4.10 gears and 31s, and they’ll start howling. These transmissions predate overdrive. Without help, you’re cruising near 3,000 RPM and bleeding fuel the whole way.

Overdrive changes the game

The go-to fix? A Gear Vendors overdrive splitter. Bolt it behind either trans, and you’ll cut cruise RPM by about 22%. That drops a 4.10 final to something closer to 3.20. It’s a game-changer for towing, hills, and long hauls. But it’ll cost you, plan on $3,000+ installed.

Worth it? If you’re running highways regularly, especially with an SM465, yes. It shifts smoother and holds gear better in daily driving. The SM420 might be better off-road, but at highway speed, it feels like a farm tractor.

Some say, “Just run taller tires.” Sure, but that kills your crawl ratio and drains torque where it matters most.

8. Parts are where the SM465 wins, and the SM420 starts to bleed

You can weld mounts and machine bellhousings. But if your input shaft grenades and nobody sells one, you’re dead in the water. That’s the risk with vintage gearboxes. Both can be rebuilt, but the SM420 makes you work for it.

The SM420 rebuild path is rough

Bearings, seals, and synchros are still out there. But need a gear or shaft? You’re digging through junkyards or chasing used parts across the country. Core units now run $500–$900. If you’re paying a shop, plan on 8–10 hours. If you’re building from mismatched cases? Clear your weekend.

The SM465 rebuild path is smooth

Shops love this box. Major internals are still in production. Input shafts, countergears, even idlers, easy to find. Full rebuild kits are cheap. Cores run $300–$600, and a rebuild usually takes 6–8 hours. Less hunting, fewer surprises.

Break a gear in the SM420? You’ll need connections or a second unit. Break one in the SM465? Order the part and keep wrenching.

9. Which one fits your build depends on what you’re wheeling and where you’re headed

No clear winner here. The right box depends on your build goals. One’s made for crawling. The other’s made for lasting.

Your drivetrain’s only as strong as its weakest link. Match the trans to your axles, tires, and transfer case, or you’ll be upgrading those next.

Pick the one that wins your mission, not just the spec sheet

Want the deepest crawl in the smallest shell? Grab the SM420. It’s made for tight builds and technical trails. You’ll chase parts and need adapters, but that 7.06:1 gear is hard to beat when control matters most.

Want something easier to live with? Go SM465. It’s stronger, cheaper to fix, and works better with modern gear. You’ll need to machine the bellhousing if it’s going into a car, but once it’s in, it’s a brute.

Both boxes earned their stripes. Just make sure the one you bolt in fits your rig’s real goals, not just your nostalgia.
