MS-90032 Coolant Equivalent: What Actually Matches, What Mixes Bad & What To Buy

Pour in the wrong coolant. Lose cabin heat. Watch the gauge climb. That’s how this mess starts. Chrysler switched to MS.90032 OAT in the 2013 era, and that system wants the right chemistry, not a color match. Mopar rates it for 10 years or 150,000 miles, which tells you the fill matters.

Purple can fool you. Some correct OAT coolants are purple. Some are orange. Check the spec, or you risk sludge, blocked flow, and hot spots where the engine can’t afford them.

1. What actually counts as the right coolant

A true match starts with the chemistry

Call it by the right rule first. A real match for this system means OAT coolant built for Chrysler’s later spec family, not a bottle that only looks right on the shelf.

Mopar’s manuals keep the target narrow, vehicles built for this fill want coolant that conforms to MS.90032, and they do not want other coolant types mixed in unless it is an emergency followed by a flush and refill.

That cuts through most bad parts-store advice. Purple alone proves nothing. A broad “all makes” label proves even less. The safest aftermarket lane starts when the label or data sheet names MS.90032, MS-12106, or a clear 2013-up Chrysler OAT fit.

Some replacements are tight matches, some are loose guesses

Dye color keeps sending people the wrong way

Color is a weak clue. Mopar OAT is widely tied to purple, but aftermarket bottles don’t stay in one lane. PEAK sells a purple OAT aimed at Chrysler, Dodge, Jeep, RAM, Fiat, and Alfa Romeo 2013-present, while other Chrysler-fit OAT products show up in orange.

That is where people get burned. One orange bottle may fit the chemistry. One purple bottle may not. Read the spec line wrong and you can contaminate a cooling system built around a 10-year / 150,000-mile OAT service interval.

2. Why Chrysler dumped the old coolant advice in 2013

The 2013 switch changed the chemistry, not just the bottle

Chrysler drew a hard line in 2013. Bulletin 07-005-12 introduced a new OAT coolant for the 2013 Journey and warned that OAT, HOAT, and IAT are not compatible or interchangeable. That warning matters because the older Chrysler fill logic had centered on MS-9769 HOAT, not the later MS-90032 OAT family.

The old setup had a shorter life. MS-9769 HOAT was commonly tied to a 5-year / 100,000-mile service interval, as indicated by Mopar maintenance schedules. The later MS-90032 OAT system pushed that out to 10 years / 150,000 miles, which changed both maintenance timing and contamination risk.

The engineering changed with it

Older IAT coolant leaned on inorganic additives like silicates and phosphates. Those additives protected metal, but they depleted faster and could wear water pump seals.

HOAT stretched service life by blending organic acids with some older-style additives, but Chrysler’s later move went farther and dropped silicates, phosphates, borates, nitrites, and amines from the target chemistry.

That shift lined up with newer engine hardware. Chrysler, Dodge, Jeep, and Ram powertrains were using more aluminum in heads, blocks, and radiators.

The later OAT formula gave longer corrosion protection, cut deposit risk, and avoided the abrasive residue older chemistries could leave behind in high-heat areas.

Where each coolant era fits

Once it moved to OAT, back-mixing became contamination

This is where people still get burned. A system built around MS-90032 OAT does not treat older HOAT as a harmless cousin. Cross that line and the cooling system no longer has the chemistry Chrysler designed around, and the factory answer after emergency mixing is still a drain, flush, and refill back to MS.90032.

3. Why two spec numbers keep showing up on the same coolant shelf

MS-90032 and MS-12106 usually point to the same later Chrysler OAT family

This is where labels start muddying the water. In real service use, MS-90032 and MS-12106 often ride in the same later Chrysler OAT lane for modern Chrysler, Dodge, Jeep, and Ram vehicles.

Reservoir stickers, parts listings, and coolant literature often treat them as close family numbers tied to the same post-2013 coolant chemistry.

Mopar owner information still points drivers back to MS.90032 as the coolant requirement in the vehicle. That is the number you will keep seeing in manuals and service directions.

The bottle on the shelf may show MS-12106, MS.90032, or both, which is why label reading matters more than bottle color.

MS-12106 came in as the safety version, not a whole new chemistry family

The chemistry story did not get torn up and replaced. MS-12106 is commonly treated as the later safety-oriented version of the same OAT platform, with a bittering agent added to reduce accidental ingestion risk. The bittering agent is denatonium benzoate, and the concentration commonly cited runs about 30 to 50 ppm.

That matters in the real world because ethylene glycol is toxic. It can cause severe organ damage if swallowed, which is why the bittered formula became part of the later labeling story. Mopar part numbers such as 68163848AB and 68163849AB are commonly tied to this dual-spec family.

What matters at the counter is the fit, not the trivia

This is not a shelf-debate point. If a bottle clearly fits the later Chrysler OAT family and names MS.90032, MS-12106, or both, it belongs in the serious-equivalent lane. If it leans on “universal,” vague compatibility language, or dye color alone, it belongs lower on the list.

Get this wrong and the next problem won’t be wording. It will be the wrong additive package circulating through a cooling system built around one OAT family and a 10-year / 150,000-mile service target.

4. Which aftermarket bottles actually deserve to be in the conversation

The strongest non-Mopar match is the one that names the Chrysler spec

Start with the bottles that put their cards on the table. Recochem Extended Life Antifreeze+Coolant explicitly lists Chrysler MS.90032 / MS-12106 in its product literature. That is the cleanest aftermarket path because the label ties straight back to the spec family the system was built around.

This is the lane serious shops like. It cuts out the “should fit” guessing game and keeps the decision tied to written compatibility. If the bottle names the Chrysler spec, the bottle has done more work than one hiding behind broad claims.

Good retail options exist, but they still need a close label check

The next tier is the major-brand OAT bottles aimed at later Chrysler systems. PEAK OET North American Vehicles Purple is sold for Chrysler, Dodge, Jeep, RAM, Fiat, and Alfa Romeo 2013-present and uses an OAT formula that is 2-EHA free, as confirmed by the manufacturer’s product specifications.

Zerex American Vehicle is sold as an orange extended-life OAT for American vehicles, including Chrysler applications, and the formula is silicate-free and phosphate-free.

These are real contenders, not junk-shelf filler. Still, the job is not done when the brand name looks familiar. Bottle revisions happen, formulas move, and the exact wording on the front can be looser than the data behind it.

Convenience bottles help, but they blur the line

This is where Prestone MAX American Vehicles Purple lands. Prestone markets it for Jeep, Ram, Dodge, and Chrysler vehicles from 2000 and newer, and says it can top off or replace the purple, gold, or pink antifreeze used in those vehicles.

That makes it useful when someone needs a fast retail answer, but it is still a broader fit claim than a tight spec-match claim.

That matters more on a full refill than on a small emergency top-off. A system built around one OAT family stays healthiest when the bottle matches that family as closely as possible. Broad convenience language helps sales faster than it helps chemistry.

Where the aftermarket stack really lands

5. What happens when OAT and HOAT get mixed

The bad mix starts the damage before the gauge ever moves

Mopar’s service guidance is blunt. Mixing coolant types is not recommended, and mixing HOAT with OAT can damage the cooling system. If that happens in an emergency, the fix is not “watch it and see.” The system should be drained, flushed, and refilled with OAT coolant conforming to MS.90032 as soon as possible.

That warning is there for a reason. Chrysler’s later systems were built around one inhibitor package. Once the wrong chemistry gets in, the coolant no longer behaves like the fluid the water pump, radiator, heater core, seals, and aluminum passages were designed around.

The sludge problem is real, and it chokes the smallest passages first

When OAT and HOAT are mixed, the additive packages can react and form gel or sludge. That junk does not need much room to start trouble. It collects in the heater core, radiator passages, and low-flow spots where heat is already hard to control.

Once flow drops, heat transfer drops with it. Cabin heat can fade first. Then coolant stops shedding heat cleanly, hot spots build inside the engine, and corrosion protection falls off because the inhibitor package has already been knocked off balance.

A small top-off mistake can still turn into a full cleanout job

This is where people talk themselves into trouble. A little wrong coolant may not boil the engine that day, but the chemistry problem starts the moment the fluids mix. You cannot see that shift from the reservoir, and you cannot judge it by color after the fact.

A simple radiator drain also does not clean out the system. Chrysler service discussion around contaminated systems points to a deeper flush because a large share of the old fluid stays trapped in the block and heater core. Leave that behind, and the fresh fill gets contaminated the second the engine comes up to temp.

6. How good coolant still gets ruined by bad service

The bottle can be right and the mix can still be wrong

MS.90032 only works as intended when the concentration is right. Mopar calls for a minimum 50% OAT coolant that meets MS.90032, mixed with distilled or deionized water. In extreme cold, concentration can go up to 70%, but going past that starts hurting heat transfer.

Water quality matters more than most owners think. Tap water carries minerals like calcium, magnesium, and chlorides. Those minerals can leave scale on hot metal surfaces, cut corrosion protection, and wear seals faster than the coolant was meant to allow.

Shops check freeze protection with a refractometer, not a guess

Chrysler bulletin 07-005-12 lays out the service mindset clearly. Check concentration with a refractometer, not by looking at the color and hoping for the best. The target mix is 50% ethylene glycol and 50% distilled water, which puts freeze protection around -35°F or -37°C.

That number matters in both directions. Too weak, and freeze and boil protection drop. Too strong, and the coolant gives up heat less efficiently, which is a bad exchange in engines already working through tight passages and high localized heat.

Air pockets can turn a normal refill into an overheat event

Modern Chrysler cooling systems do not always forgive a sloppy refill. Mopar warns that some vehicles require special tools to fill the system properly and says improper filling can cause severe internal engine damage. That warning is there because trapped air can stop coolant flow where the engine needs it most.

On engines like the 3.6L Pentastar and 5.7L Hemi, air pockets can keep the thermostat from reacting normally and can leave hot spots in the heads or block. Many techs use a vacuum-fill tool for that reason. It pulls air out first, then draws coolant in without leaving empty pockets behind.

The service rules that matter

7. Which bottle makes sense when it’s time to buy

The safest answer is still the factory-spec path

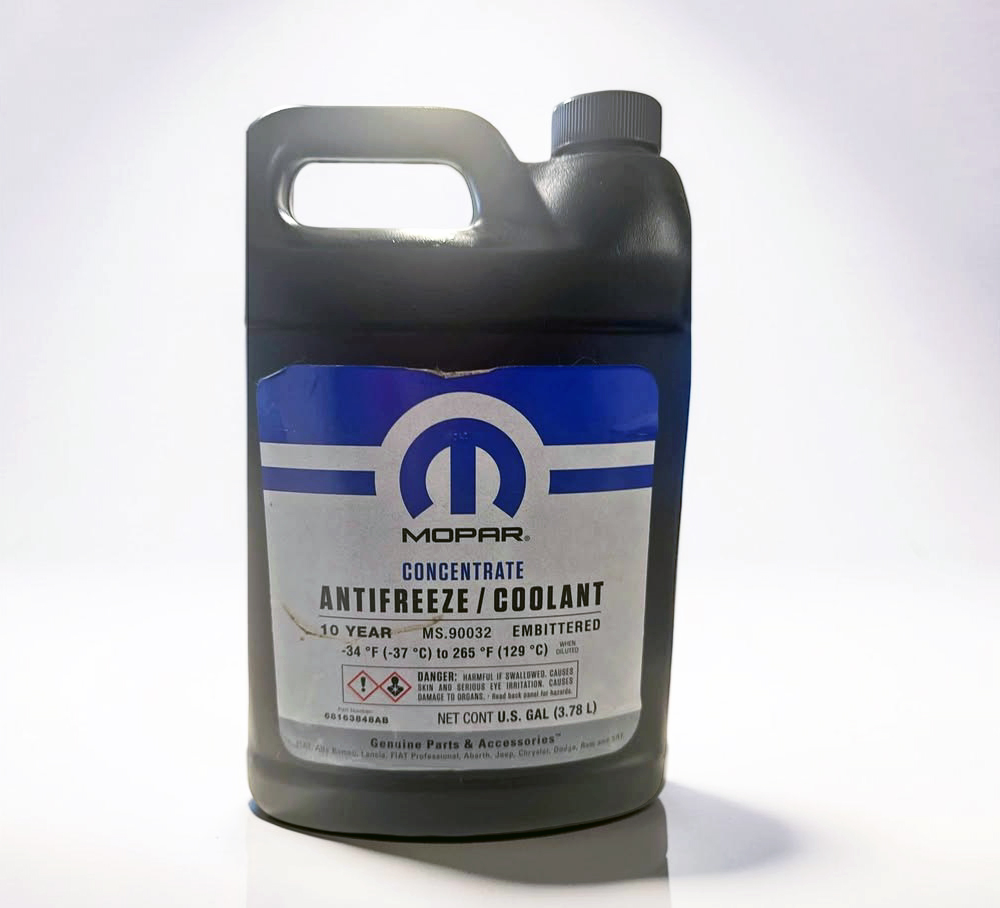

The cleanest choice is simple. Buy genuine Mopar 10-Year OAT that meets MS.90032 and move on. That keeps the coolant, the service procedure, and the spec on the same track.

The next-best lane is the serious aftermarket bottle that says the right thing in writing. If the label or data sheet explicitly names MS.90032 or MS-12106, it belongs near the top of the list. That is why products like Recochem Extended Life land ahead of broad “works in many vehicles” bottles.

Retail OAT options can work, but they need a harder label check

A Chrysler-targeted OAT from a major brand can still be a sound buy. PEAK OET Purple and Zerex American Vehicle both sit in that lane when the label and application list line up with the later Chrysler OAT family.

The issue is simple, retail fit language can be broader than the exact material spec the cooling system was designed around.

That matters most on a full refill. A top-off in a pinch buys time. A full fill locks that chemistry into the radiator, heater core, block, pump, seals, and every hot aluminum passage in the system.

The “one jug for everything” plan is where the compromise starts

Universal coolant sits at the bottom of the stack for full service. It may get a stranded vehicle home, but it does not give the same confidence as a bottle tied clearly to MS.90032, MS-12106, or a tight 2013-up Chrysler OAT fit. That compromise starts at the label and ends in the cooling system.

A Chrysler cooling system built for one OAT family does best when you feed it that family again. Once the bottle gets vague, the guesswork goes up and the margin goes down. The factory service interval attached to this chemistry is 10 years or 150,000 miles.
